2SC3515-O(TE12L,CF

2SC3515-O(TE12L,CF



Производитель:

Toshiba
Описание:
 TRANSISTOR NPN 300V 0.1A SC-62
Категория:
 Discrete Semiconductor Products
Корпус:
 --
Год:
 --

Datasheet (Техническое описание) 2SC3515-O(TE12L,CF

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog Information2SC3515-O(TE12L,CF
VendorToshiba
CategoryDiscrete Semiconductor Products
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)300V
Current - Collector (Ic) (Max)100mA
Power - Max500mW
DC Current Gain (hFE) (Min) @ Ic, Vce30 @ 20mA, 10V
Vce Saturation (Max) @ Ib, Ic500mV @ 2mA, 20mA
Frequency - Transition80MHz
Current - Collector Cutoff (Max)-
Mounting TypeSurface Mount

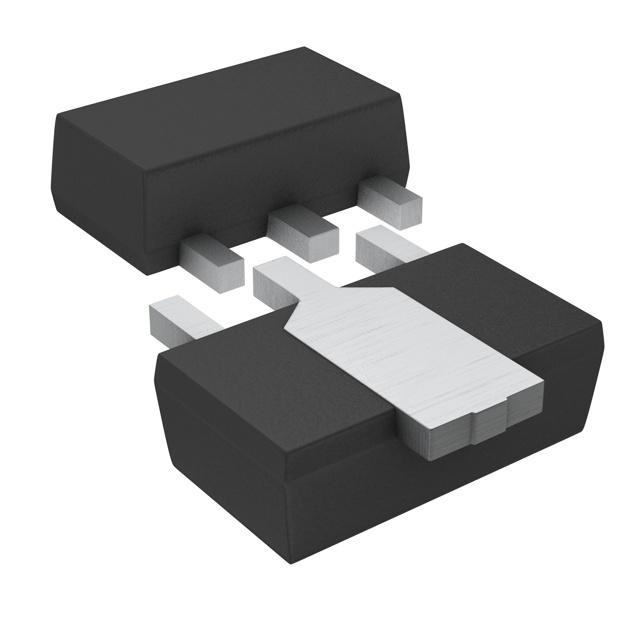

Package / CaseSC-62, SOT-89, MPT3 (3 leads + Tab)
PackagingTape & Reel (TR)
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 2SC3515 O TE12L,CF
2SC3515OTE12L,CF
