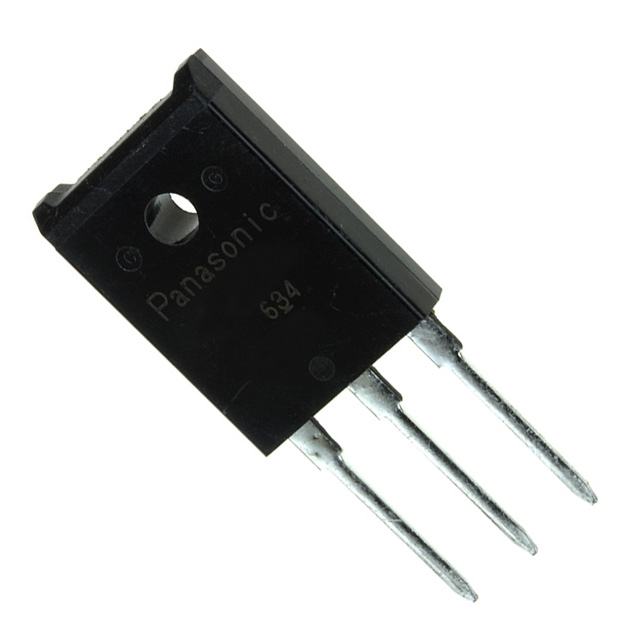

2SC3974

2SC3974



Производитель:

Panasonic - SSG
Описание:
 TRANS NPN 500VCEO 7A TOP-3F
Категория:
 Discrete Semiconductor Products
Корпус:
 Panasonic
Год:
 --

Datasheet (Техническое описание) 2SC3974

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog Information2SC3974
VendorPanasonic - SSG
CategoryDiscrete Semiconductor Products
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)500V
Current - Collector (Ic) (Max)7A
Power - Max80W
DC Current Gain (hFE) (Min) @ Ic, Vce15 @ 100mA, 5V
Vce Saturation (Max) @ Ib, Ic1V @ 800mA, 4A
Frequency - Transition20MHz
Current - Collector Cutoff (Max)-
Mounting TypeThrough Hole
Package / CaseTOP-3F
PackagingBulk
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 2SC3974
2SC3974
