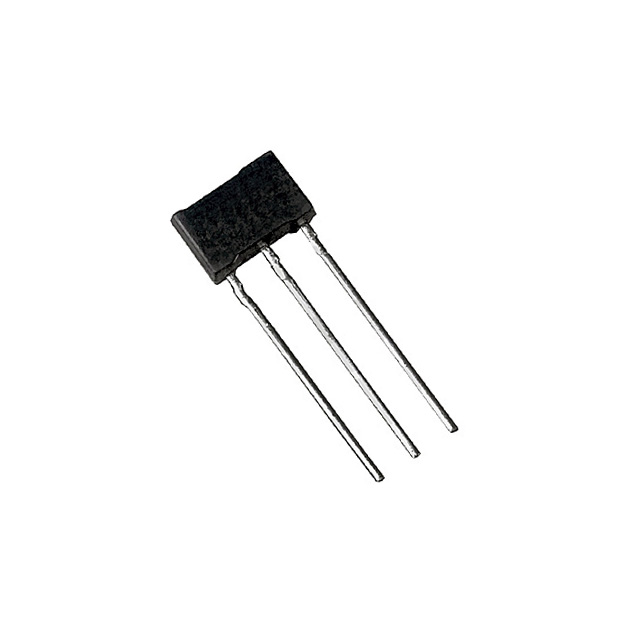

2SC43910RA

2SC43910RA



Производитель:

Panasonic - SSG
Описание:
 TRANS NPN 80VCEO 1A MT-2
Категория:
 Discrete Semiconductor Products
Корпус:
 --
Год:
 --

Datasheet (Техническое описание) 2SC43910RA

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog Information2SC43910RA
VendorPanasonic - SSG
CategoryDiscrete Semiconductor Products
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)80V
Current - Collector (Ic) (Max)1A
Power - Max1W
DC Current Gain (hFE) (Min) @ Ic, Vce120 @ 100mA, 2V
Vce Saturation (Max) @ Ib, Ic300mV @ 50mA, 500mA
Frequency - Transition120MHz
Current - Collector Cutoff (Max)-
Mounting TypeThrough Hole
Package / CaseMT-2
PackagingTape & Box (TB)
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 2SC43910RA
2SC43910RA
2SC43910RATB ND
2SC43910RATBND
2SC43910RATB
