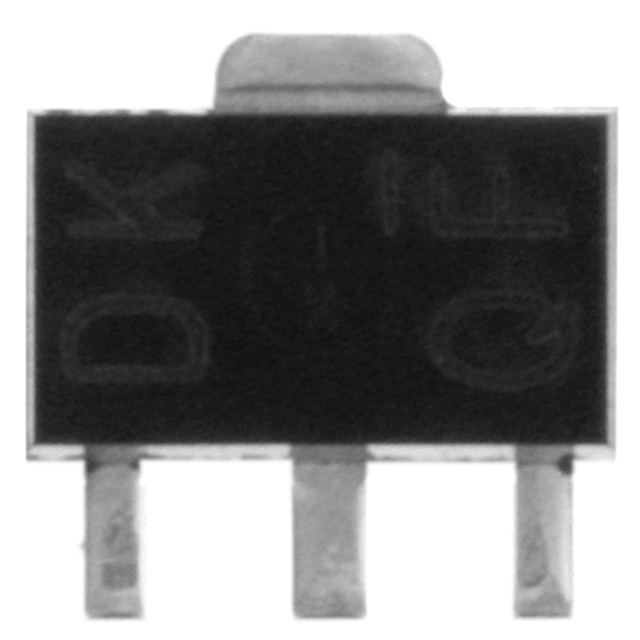

2SC4672T100Q

2SC4672T100Q



Производитель:

Rohm Semiconductor
Описание:
 TRANS NPN 50V 3A SOT-89
Категория:
 Discrete Semiconductor Products
Корпус:
 --
Год:
 07+

Datasheet (Техническое описание) 2SC4672T100Q

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog Information2SC4672T100Q
VendorRohm Semiconductor
CategoryDiscrete Semiconductor Products
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)50V
Current - Collector (Ic) (Max)3A
Power - Max500mW
DC Current Gain (hFE) (Min) @ Ic, Vce120 @ 500mA, 2V
Vce Saturation (Max) @ Ib, Ic350mV @ 50mA, 1A
Frequency - Transition210MHz
Current - Collector Cutoff (Max)-
Mounting TypeSurface Mount
Package / CaseSC-62, SOT-89, MPT3 (3 leads + Tab)
PackagingTape & Reel (TR)
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 2SC4672T100Q
2SC4672T100Q
2SC4672T100QTR ND
2SC4672T100QTRND
2SC4672T100QTR
