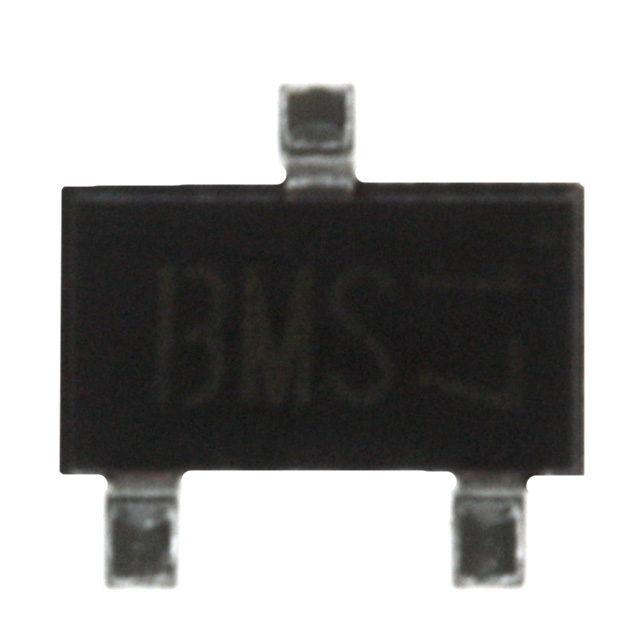

2SC4713KT146S

2SC4713KT146S



Производитель:

Rohm Semiconductor
Описание:
 TRANS NPN 6V 50MA SOT-346
Категория:
 Discrete Semiconductor Products
Корпус:
 --
Год:
 07+

Datasheet (Техническое описание) 2SC4713KT146S

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog Information2SC4713KT146S
VendorRohm Semiconductor
CategoryDiscrete Semiconductor Products
Frequency - Transition800MHz
Noise Figure (dB Typ @ f)-
Current - Collector (Ic) (Max)50mA
DC Current Gain (hFE) (Min) @ Ic, Vce270 @ 5mA, 5V
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)6V
Gain-
Power - Max200mW
Compression Point (P1dB)-
Package / CaseSC-59-3, SMT3, SOT-346, TO-236
PackagingTape & Reel (TR)
Drawing Number*
Mounting Type*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 2SC4713KT146S
2SC4713KT146S
2SC4713KT146STR ND
2SC4713KT146STRND
2SC4713KT146STR
