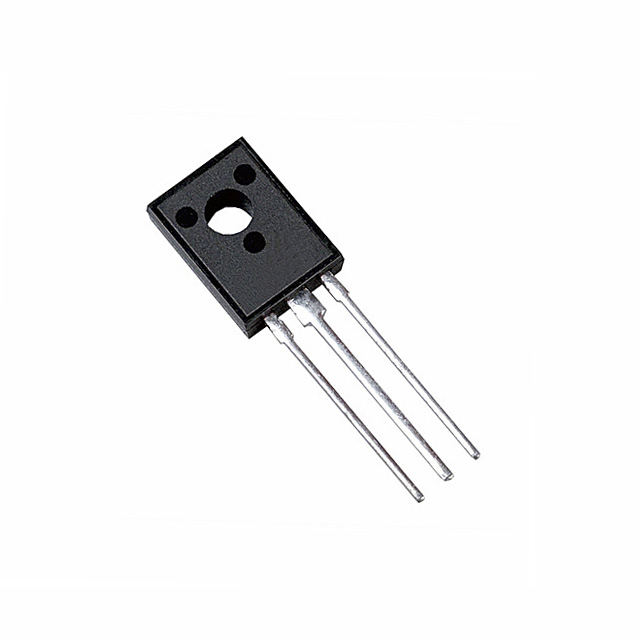

2SC1567AR

2SC1567AR



Производитель:

Panasonic - SSG
Описание:
 TRANS NPN HF 120VCEO .5A TO-126
Категория:
 Discrete Semiconductor Products
Корпус:
 --
Год:
 --

Datasheet (Техническое описание) 2SC1567AR

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog Information2SC1567AR
VendorPanasonic - SSG
CategoryDiscrete Semiconductor Products
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)120V
Current - Collector (Ic) (Max)500mA
Power - Max1.2W
DC Current Gain (hFE) (Min) @ Ic, Vce130 @ 150mA, 10V
Vce Saturation (Max) @ Ib, Ic400mV @ 50mA, 500mA
Frequency - Transition120MHz
Current - Collector Cutoff (Max)-
Mounting TypeThrough Hole
Package / CaseTO-126B-A1
PackagingBulk
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 2SC1567AR
2SC1567AR
