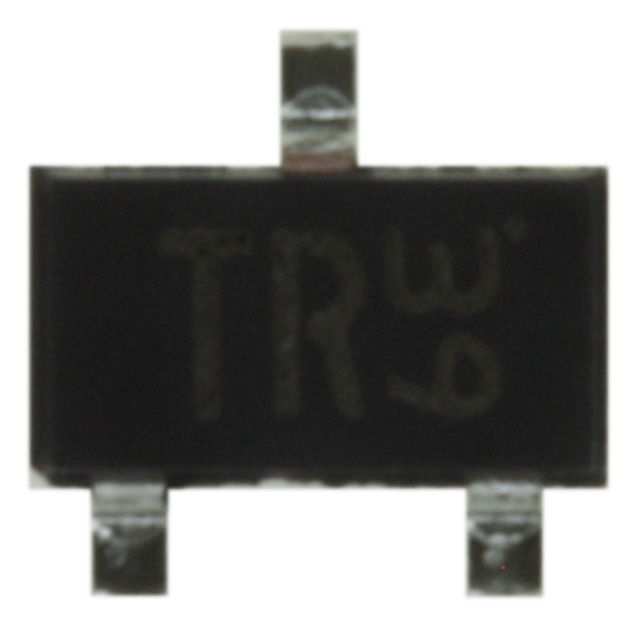

2SC3906KT146R

2SC3906KT146R



Производитель:

Rohm Semiconductor
Описание:
 TRANS NPN 120V 50MA SOT-346
Категория:
 Discrete Semiconductor Products
Корпус:
 --
Год:
 --

Datasheet (Техническое описание) 2SC3906KT146R

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog Information2SC3906KT146R
VendorRohm Semiconductor
CategoryDiscrete Semiconductor Products
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)120V
Current - Collector (Ic) (Max)50mA
Power - Max200mW
DC Current Gain (hFE) (Min) @ Ic, Vce180 @ 2mA, 6V
Vce Saturation (Max) @ Ib, Ic500mV @ 1mA, 10mA
Frequency - Transition140MHz
Current - Collector Cutoff (Max)-
Mounting TypeSurface Mount
Package / CaseSC-59-3, SMT3, SOT-346, TO-236
PackagingTape & Reel (TR)
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 2SC3906KT146R
2SC3906KT146R
2SC3906KT146RTR ND
2SC3906KT146RTRND
2SC3906KT146RTR
