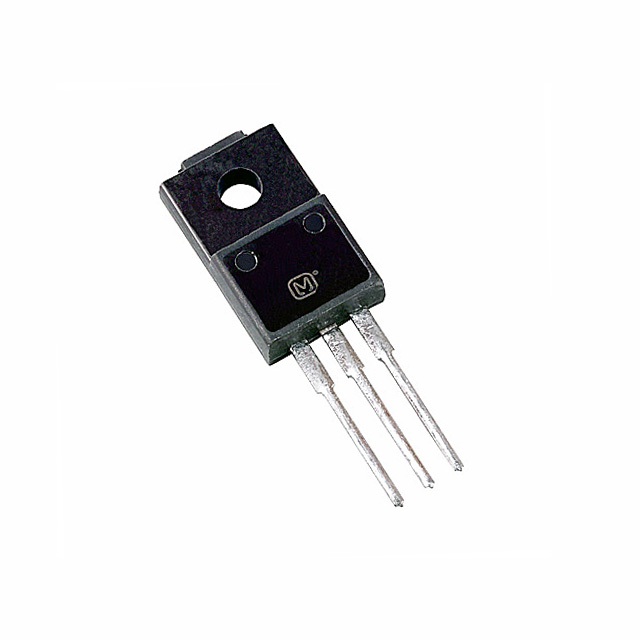

2SC3942

2SC3942



Производитель:

Panasonic - SSG
Описание:
 TRANS NPN HF 300VCEO .1A TO-220F
Категория:
 Discrete Semiconductor Products
Корпус:
 TO-220
Год:
 96

Datasheet (Техническое описание) 2SC3942

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog Information2SC3942
VendorPanasonic - SSG
CategoryDiscrete Semiconductor Products
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)300V
Current - Collector (Ic) (Max)100mA
Power - Max10W
DC Current Gain (hFE) (Min) @ Ic, Vce50 @ 5mA, 50V
Vce Saturation (Max) @ Ib, Ic1.5V @ 3mA, 30mA
Frequency - Transition140MHz
Current - Collector Cutoff (Max)-
Mounting TypeThrough Hole
Package / CaseTO-220F
PackagingBulk
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 2SC3942
2SC3942
