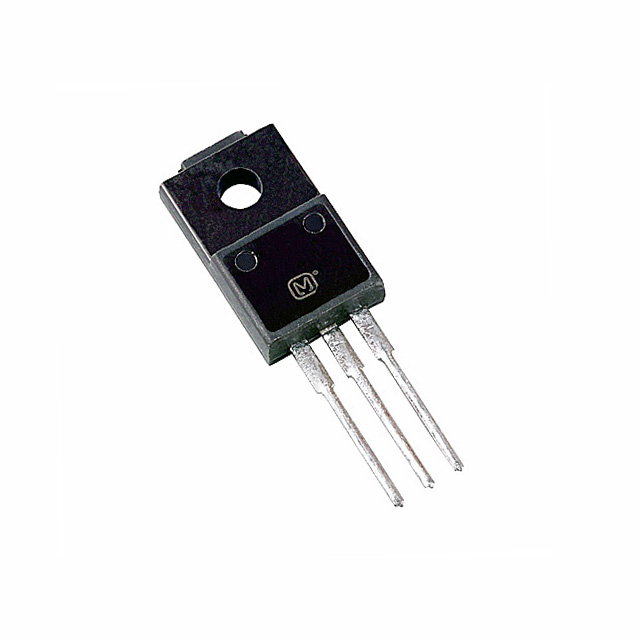

2SC3943

2SC3943



Производитель:

Panasonic - SSG
Описание:
 TRANS NPN HF 50VCEO .15A TO-220F
Категория:
 Discrete Semiconductor Products
Корпус:
 TO-220
Год:
 02+

Datasheet (Техническое описание) 2SC3943

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog Information2SC3943
VendorPanasonic - SSG
CategoryDiscrete Semiconductor Products
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)50V
Current - Collector (Ic) (Max)150mA
Power - Max2W
DC Current Gain (hFE) (Min) @ Ic, Vce20 @ 100mA, 5V
Vce Saturation (Max) @ Ib, Ic500mV @ 15mA, 150mA
Frequency - Transition300MHz
Current - Collector Cutoff (Max)-
Mounting TypeThrough Hole
Package / CaseTO-220F
PackagingBulk
Drawing Number*
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names 2SC3943
2SC3943
