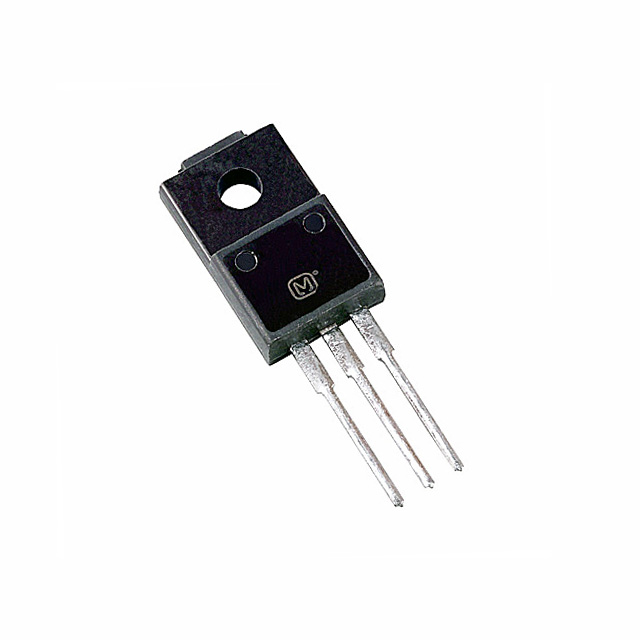

2SC3944AQ

2SC3944AQ



Производитель:

Panasonic - SSG
Описание:
 TRANS NPN HF 180VCEO 1A TO-220F
Категория:
 Discrete Semiconductor Products
Корпус:
 --
Год:
 n/a

Datasheet (Техническое описание) 2SC3944AQ

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog Information2SC3944AQ
VendorPanasonic - SSG
CategoryDiscrete Semiconductor Products
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)180V
Current - Collector (Ic) (Max)1A
Power - Max15W
DC Current Gain (hFE) (Min) @ Ic, Vce90 @ 150mA, 10V
Vce Saturation (Max) @ Ib, Ic2V @ 50mA, 500mA
Frequency - Transition200MHz
Current - Collector Cutoff (Max)-
Mounting TypeThrough Hole
Package / CaseTO-220F
PackagingBulk
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names 2SC3944AQ
2SC3944AQ
