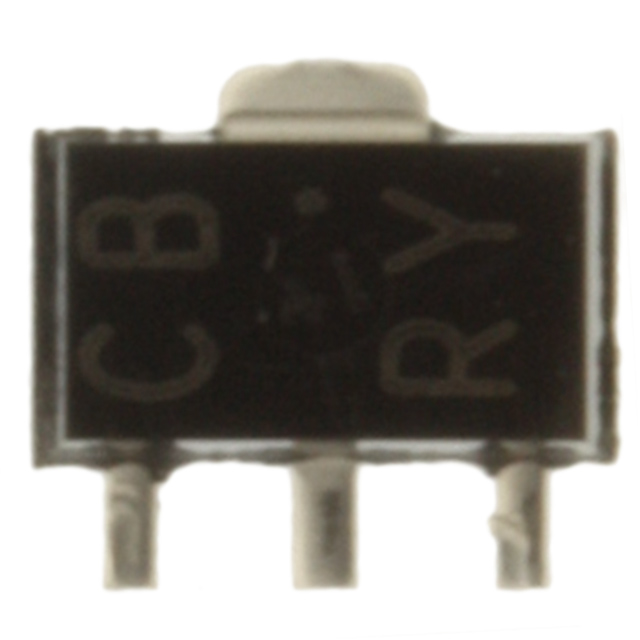

2SC4132T100R

2SC4132T100R



Производитель:

Rohm Semiconductor
Описание:
 TRANS NPN 120V 1.5A SOT-89
Категория:
 Discrete Semiconductor Products
Корпус:
 SOT89
Год:
 06+

Datasheet (Техническое описание) 2SC4132T100R

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog Information2SC4132T100R
VendorRohm Semiconductor
CategoryDiscrete Semiconductor Products
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)120V
Current - Collector (Ic) (Max)2A
Power - Max500mW
DC Current Gain (hFE) (Min) @ Ic, Vce180 @ 100mA, 5V
Vce Saturation (Max) @ Ib, Ic2V @ 100mA, 1A
Frequency - Transition80MHz
Current - Collector Cutoff (Max)-
Mounting TypeSurface Mount
Package / CaseSC-62, SOT-89, MPT3 (3 leads + Tab)
PackagingTape & Reel (TR)
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 2SC4132T100R
2SC4132T100R
2SC4132T100RTR ND
2SC4132T100RTRND
2SC4132T100RTR
