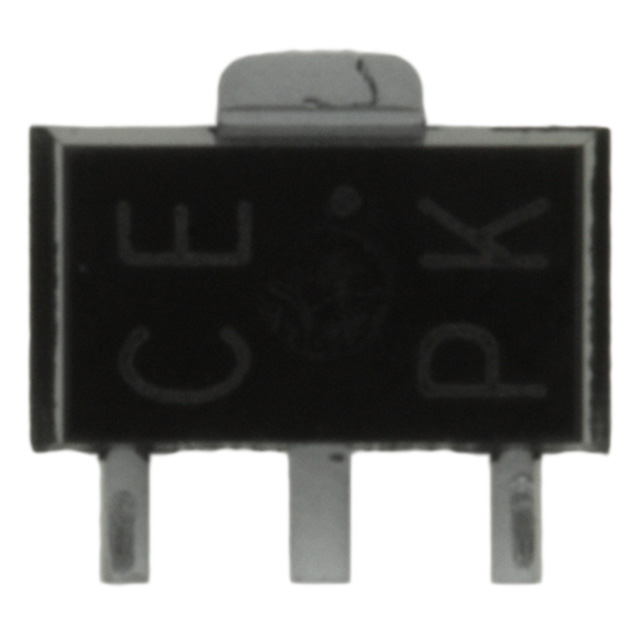

2SC4505T100P

2SC4505T100P



Производитель:

Rohm Semiconductor
Описание:
 TRANS NPN 400V 100MA SOT-89
Категория:
 Discrete Semiconductor Products
Корпус:
 --
Год:
 07+

Datasheet (Техническое описание) 2SC4505T100P

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog Information2SC4505T100P
VendorRohm Semiconductor
CategoryDiscrete Semiconductor Products
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)400V
Current - Collector (Ic) (Max)100mA
Power - Max500mW
DC Current Gain (hFE) (Min) @ Ic, Vce82 @ 10mA, 10V
Vce Saturation (Max) @ Ib, Ic500mV @ 1mA, 10mA
Frequency - Transition20MHz
Current - Collector Cutoff (Max)-
Mounting TypeSurface Mount
Package / CaseSC-62, SOT-89, MPT3 (3 leads + Tab)
PackagingTape & Reel (TR)
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 2SC4505T100P
2SC4505T100P
2SC4505T100PTR ND
2SC4505T100PTRND
2SC4505T100PTR
