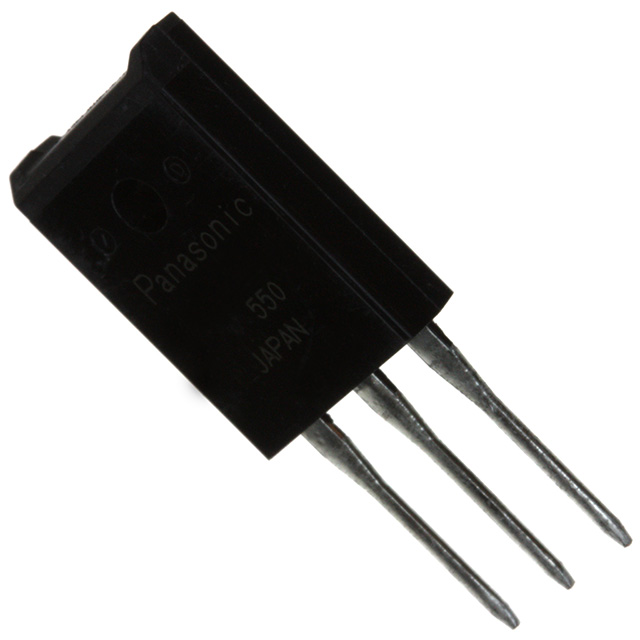

2SC4960

2SC4960



Производитель:

Panasonic - SSG
Описание:
 TRANS NPN 800VCEO 1A TOP-3F
Категория:
 Discrete Semiconductor Products
Корпус:
 03+/04+
Год:
 TO-3P

Datasheet (Техническое описание) 2SC4960

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog Information2SC4960
VendorPanasonic - SSG
CategoryDiscrete Semiconductor Products
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)800V
Current - Collector (Ic) (Max)1A
Power - Max40W
DC Current Gain (hFE) (Min) @ Ic, Vce6 @ 50mA, 5V
Vce Saturation (Max) @ Ib, Ic1.5V @ 40mA, 200mA
Frequency - Transition4MHz
Current - Collector Cutoff (Max)-
Mounting TypeThrough Hole
Package / CaseTOP-3F
PackagingBulk
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 2SC4960
2SC4960
