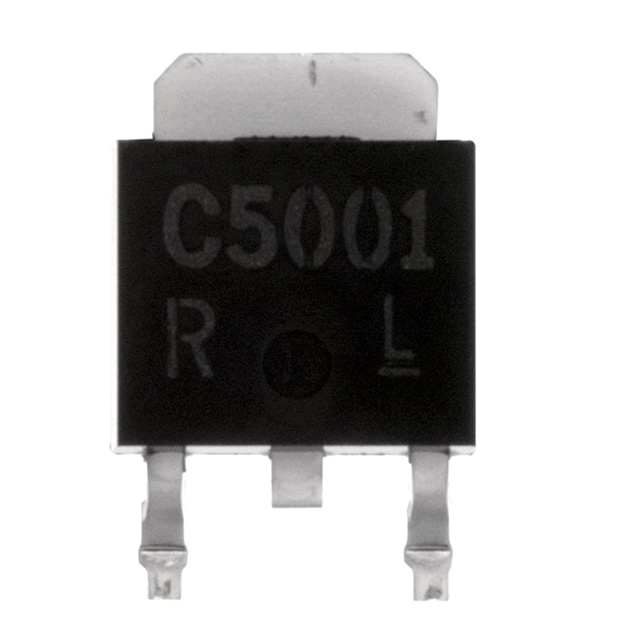

2SC5001TLR

2SC5001TLR



Производитель:

Rohm Semiconductor
Описание:
 TRANS NPN 20V 10A SOT-428
Категория:
 Discrete Semiconductor Products
Корпус:
 --
Год:
 07+

Datasheet (Техническое описание) 2SC5001TLR

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog Information2SC5001TLR
VendorRohm Semiconductor
CategoryDiscrete Semiconductor Products
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)20V
Current - Collector (Ic) (Max)10A
Power - Max10W
DC Current Gain (hFE) (Min) @ Ic, Vce180 @ 500mA, 2V
Vce Saturation (Max) @ Ib, Ic250mV @ 50mA, 4A
Frequency - Transition150MHz
Current - Collector Cutoff (Max)-
Mounting TypeSurface Mount
Package / CaseDPak, SC-63, TO-252 (2 leads+tab)
PackagingTape & Reel (TR)
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 2SC5001TLR
2SC5001TLR
2SC5001TLRTR ND
2SC5001TLRTRND
2SC5001TLRTR
