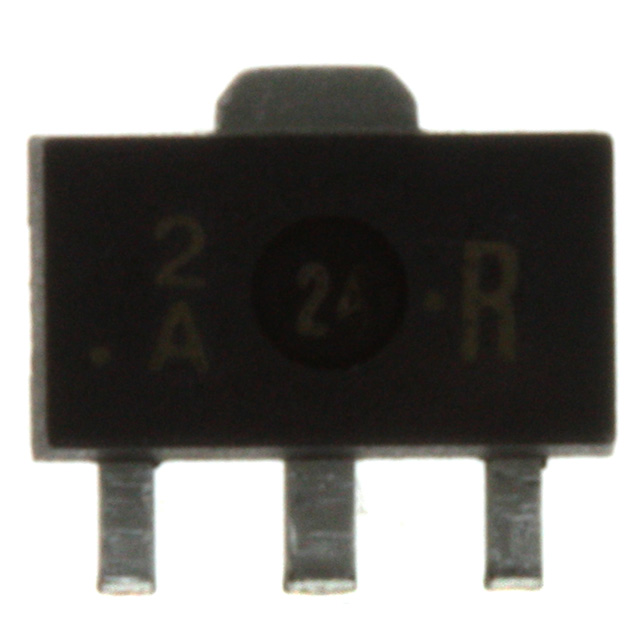

2SC50260RL

2SC50260RL



Производитель:

Panasonic - SSG
Описание:
 TRANS NPN 80VCEO 1A MINI-PWR
Категория:
 Discrete Semiconductor Products
Корпус:
 --
Год:
 --

Datasheet (Техническое описание) 2SC50260RL

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog Information2SC50260RL
VendorPanasonic - SSG
CategoryDiscrete Semiconductor Products
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)80V
Current - Collector (Ic) (Max)1A
Power - Max1W
DC Current Gain (hFE) (Min) @ Ic, Vce120 @ 100mA, 2V
Vce Saturation (Max) @ Ib, Ic300mV @ 50mA, 500mA
Frequency - Transition120MHz
Current - Collector Cutoff (Max)-
Mounting TypeSurface Mount
Package / CaseMini 3P
PackagingTape & Reel (TR)
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 2SC50260RL
2SC50260RL
2SC50260RLTR ND
2SC50260RLTRND
2SC50260RLTR
