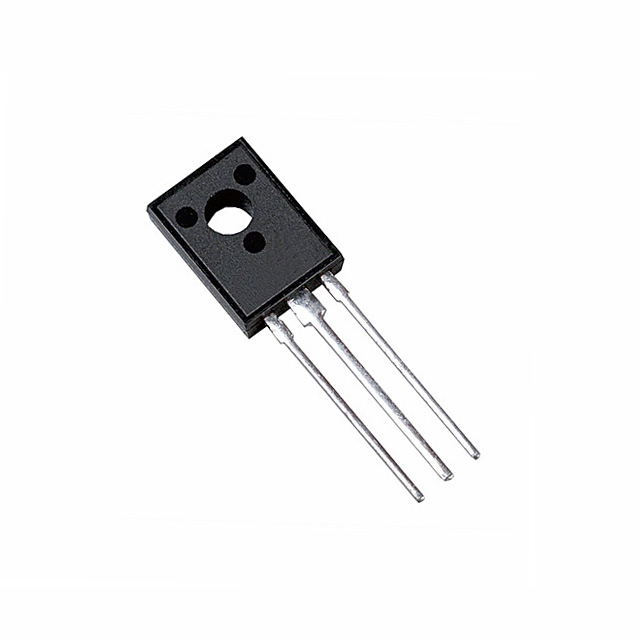

2SD0946B

2SD0946B



Производитель:

Panasonic - SSG
Описание:
 TRANS NPN LF 80VCEO 1A TO-126
Категория:
 Discrete Semiconductor Products
Корпус:
 --
Год:
 --

Datasheet (Техническое описание) 2SD0946B

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog Information2SD0946B
VendorPanasonic - SSG
CategoryDiscrete Semiconductor Products
Transistor TypeNPN - Darlington
Voltage - Collector Emitter Breakdown (Max)80V
Current - Collector (Ic) (Max)1A
Power - Max1.2W
DC Current Gain (hFE) (Min) @ Ic, Vce4000 @ 1A, 10V
Vce Saturation (Max) @ Ib, Ic1.8V @ 1mA, 1A
Frequency - Transition150MHz
Current - Collector Cutoff (Max)-
Mounting TypeThrough Hole
Package / CaseTO-126B-A1
PackagingBulk
Drawing Number*
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names 2SD0946B
2SD0946B
