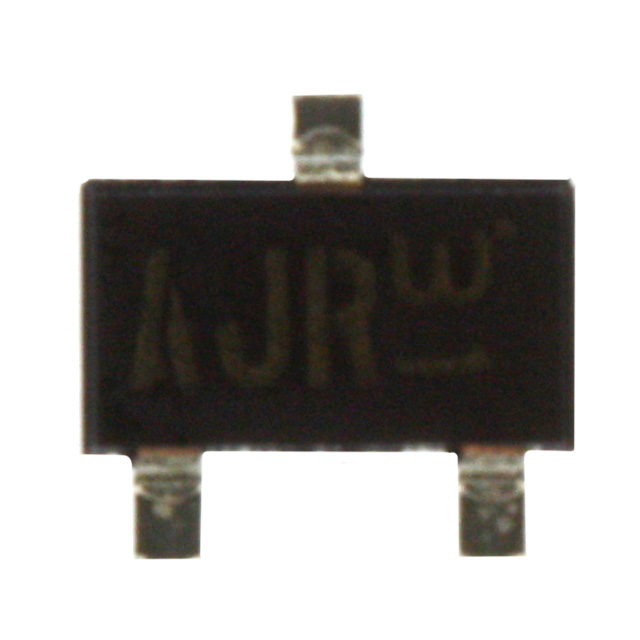

2SD1782KT146R

2SD1782KT146R



Производитель:

Rohm Semiconductor
Описание:
 TRANS NPN 80V 0.5A SOT-346
Категория:
 Discrete Semiconductor Products
Корпус:
 --
Год:
 07+

Datasheet (Техническое описание) 2SD1782KT146R

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog Information2SD1782KT146R
VendorRohm Semiconductor
CategoryDiscrete Semiconductor Products
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)80V
Current - Collector (Ic) (Max)500mA
Power - Max200mW
DC Current Gain (hFE) (Min) @ Ic, Vce180 @ 100mA, 3V
Vce Saturation (Max) @ Ib, Ic500mV @ 50mA, 500mA
Frequency - Transition120MHz
Current - Collector Cutoff (Max)-
Mounting TypeSurface Mount
Package / CaseSC-59-3, SMT3, SOT-346, TO-236
PackagingTape & Reel (TR)
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 2SD1782KT146R
2SD1782KT146R
2SD1782KT146RTR ND
2SD1782KT146RTRND
2SD1782KT146RTR
