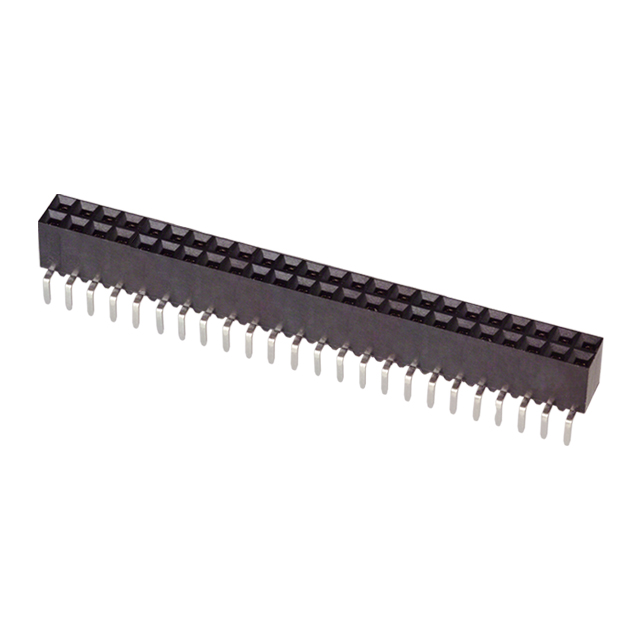

1-534267-1

1-534267-1



Производитель:

Tyco Electronics
Описание:
 CONN RECEPT 48POS .100 VERT DUAL
Категория:
 Connectors
Корпус:
 --
Год:
 --

Datasheet (Техническое описание) 1-534267-1

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog Information1-534267-1
VendorTyco Electronics
CategoryConnectors
ColorBlack
Connector TypeReceptacle, Socket - Bottom or Top entry
Contact FinishGold
Contact Finish Thickness30??in (0.76??m)
Features-
Height Above Board0.265" (6.73mm)
Height Stacking (Mating)-
Mounting TypeThrough Hole
Number of Contacts LoadedAll
Number of Positions 48
Number of Rows2
PackagingTube
Pitch0.100" (2.54mm)
Row Spacing0.100" (2.54mm)
TerminationSolder
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names 1 534267 1
15342671
A26506 ND
A26506ND
A26506
