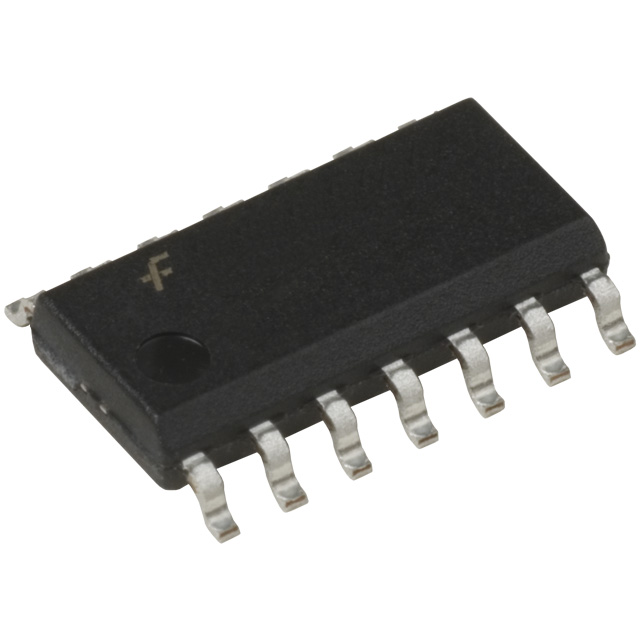

74LVQ08SCX

74LVQ08SCX



Производитель:

Fairchild Semiconductor
Описание:
 IC GATE AND QUAD 2IN LV 14SOIC
Категория:
 Integrated Circuits (ICs)
Корпус:
 SOP
Год:
 2000

Datasheet (Техническое описание) 74LVQ08SCX

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog Information74LVQ08SCX
VendorFairchild Semiconductor
CategoryIntegrated Circuits (ICs)
Number of Circuits4 - Quad
Package / Case14-SOIC
Logic TypeAND Gate
PackagingTape & Reel (TR)
Mounting TypeSurface Mount
Number of Inputs2
Current - Output High, Low12mA, 12mA
Supply Voltage2 V ~ 3.6 V
Operating Temperature-40°C ~ 85°C
Voltage - Supply2 V ~ 3.6 V
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 74LVQ08SCX
74LVQ08SCX
