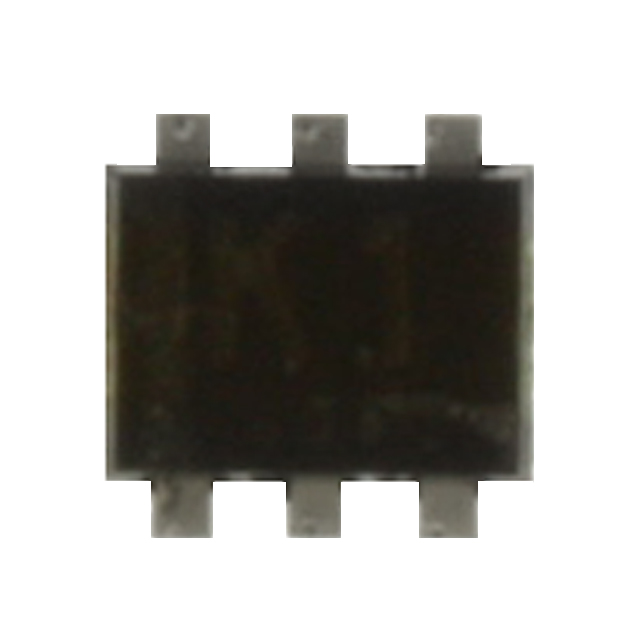

EM6K1T2R

EM6K1T2R



Производитель:

Rohm Semiconductor
Описание:
 MOSFET 2N-CH 30V .1A EMT6
Категория:
 Discrete Semiconductor Products
Корпус:
 --
Год:
 04+

Datasheet (Техническое описание) EM6K1T2R

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationEM6K1T2R
VendorRohm Semiconductor
CategoryDiscrete Semiconductor Products
Mounting TypeSurface Mount
FET Polarity2 N-Channel (Dual)
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25° C100mA
Rds On (Max) @ Id, Vgs8 Ohm @ 10mA, 4V
Input Capacitance (Ciss) @ Vds 13pF @ 5V
Power - Max150mW
PackagingTape & Reel (TR)
Gate Charge (Qg) @ Vgs-
Package / CaseEMT6
FET FeatureLogic Level Gate
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names EM6K1T2R
EM6K1T2R
EM6K1T2RTR ND
EM6K1T2RTRND
EM6K1T2RTR
