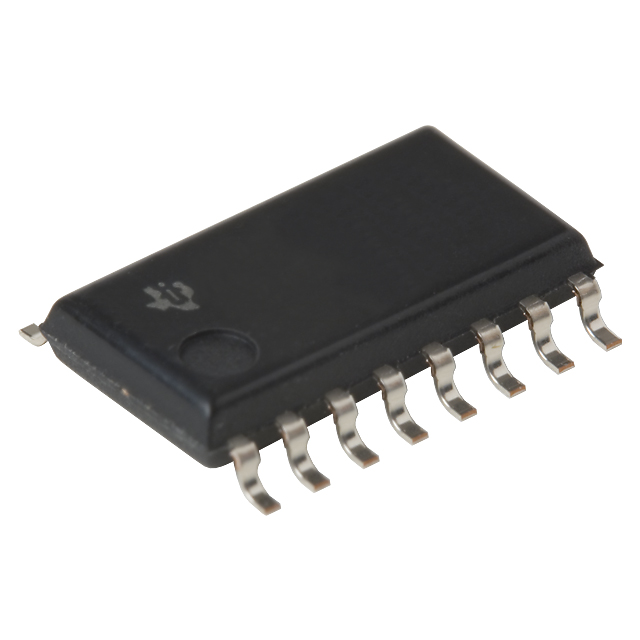

| Technical/Catalog Information | SN74AS174NSR |
| Vendor | Texas Instruments |
| Category | Integrated Circuits (ICs) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOP |
| Function | Master Reset |
| Number of Bits per Element | 6 |
| Number of Elements | 1 - Single |
| Current - Output High, Low | 2mA, 20mA |
| Output Type | Tri-State Non Inverted |
| Trigger Type | Positive Edge |
| Type | D-Type Bus |
| Packaging | Tape & Reel (TR) |
| Operating Temperature | 0°C ~ 70°C |
| Delay Time - Propagation | 3.6ns |
| Frequency - Clock | 100MHz |
| Voltage - Supply | 4.5 V ~ 5.5 V |
| Drawing Number | 296; 4040062; NS; 14, 16, 20, 24 |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | SN74AS174NSR
SN74AS174NSR
|
