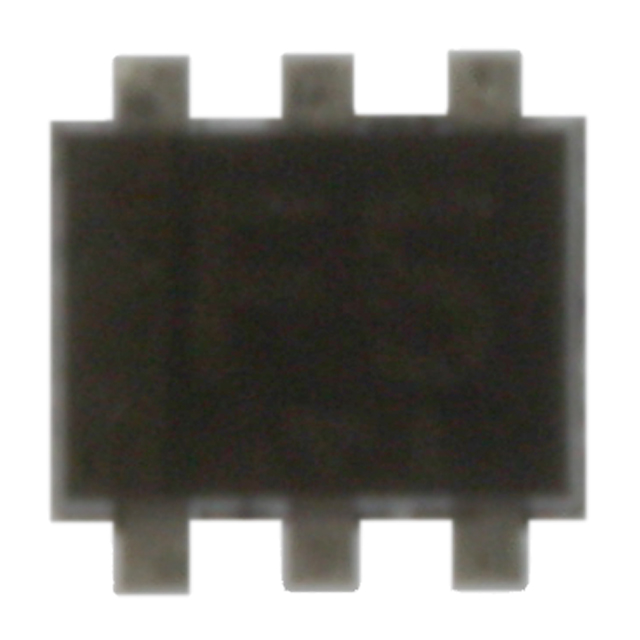

| Technical/Catalog Information | EMF5T2R |
| Vendor | Rohm Semiconductor(VA) |
| Category | Discrete Semiconductor Products |
| Transistor Type | 1 NPN, 1 PNP - Pre-Biased (Dual) |
| Voltage - Collector Emitter Breakdown (Max) | 12V, 50V |
| Current - Collector (Ic) (Max) | 100mA, 500mA |
| Power - Max | 150mW |
| Resistor - Base (R1) (Ohms) | 47K |
| Resistor - Emitter Base (R2) (Ohms) | 47K |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 10mA, 200mA / 300mV @ 500??A, 10mA |
| Current - Collector Cutoff (Max) | - |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 270 @ 10mA, 2V / 68 @ 5mA, 5V |
| Frequency - Transition | 250MHz, 260MHz |
| Mounting Type | Surface Mount |
| Package / Case | EMT6 |
| Packaging | Digi-Reel? |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | EMF5T2R
EMF5T2R
EMF5T2RDKR ND
EMF5T2RDKRND
EMF5T2RDKR
|
