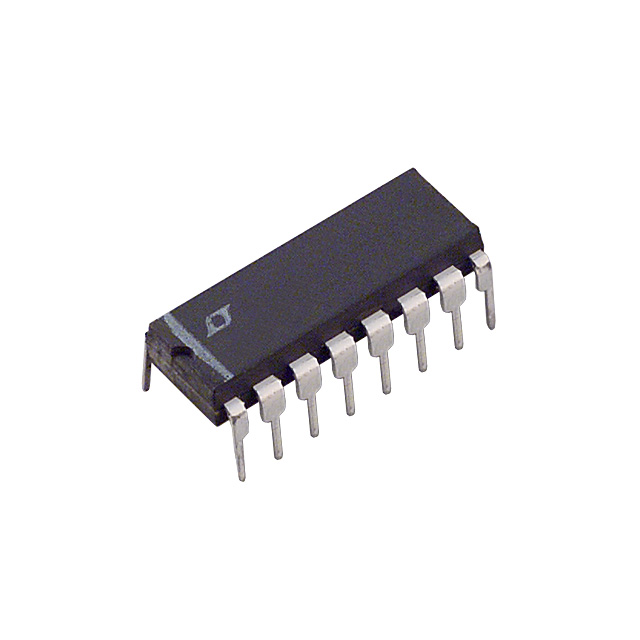

LT1158CN

LT1158CN



Производитель:

Linear Technology
Описание:
 IC MOSFET DRVR 1/2BRDG NCH 16DIP
Категория:
 Integrated Circuits (ICs)
Корпус:
 DIP14
Год:
 4

Datasheet (Техническое описание) LT1158CN

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationLT1158CN
VendorLinear Technology
CategoryIntegrated Circuits (ICs)
ConfigurationHalf Bridge
Voltage - Supply5 V ~ 30 V
Current - Peak500mA
Delay Time-
Package / Case16-DIP (300 mil)
PackagingTube
Number of Outputs2
Input TypePWM
Number of Configurations1
Operating Temperature0°C ~ 70°C
High Side Voltage - Max (Bootstrap)56V
Drawing Number161; 05-08-1510; N; 8
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names LT1158CN
LT1158CN
