1672

Производитель:

B&K Precision

Купить

форма запроса

Описание:

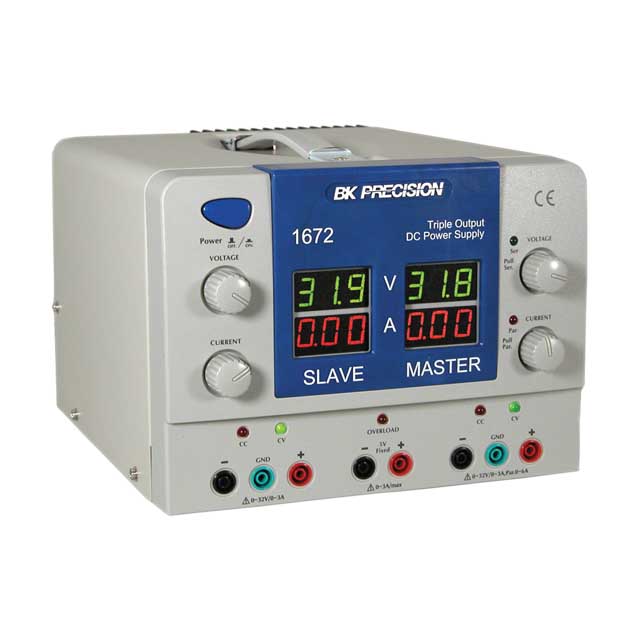

PWR SUPPLY 0-32V 0-3A TRIPLEOUT

Категория:

Test Equipment

Корпус:

MSOP8

Год:

05+

Technical/Catalog Information	1672
Vendor	B&K Precision
Category	Test Equipment
Number of Outputs	3
Display Type	LED
Features	Regulated, Tracking and Parallel Modes
Voltage - Output	0 ~ 32VDC, 0 ~ 32VDC, 5VDC Fixed
Current - Output	0 ~ 3A, 0 ~ 3A, 0 ~ 3A Fixed
Voltage - Supply	115VAC/230VAC
Number of Digits/Alpha	3 (4)
Type	Bench (AC to DC)
Current Regulation - Line	0.2% + 5mA
Current Regulation - Load	0.2% + 8mA
Accuracy - Voltmeter; Ammeter	0.1% + 3 digits
Voltage Regulation - Line	0.01% + 5mV
Voltage Regulation - Load	0.2% + 10mV
Ripple	20mV p-p
Weight	13 lbs (5.90kg)
Power (Watts)	195VA
Size / Dimension	12.2" L x 9" W x 7" H (310mm x 230mm x 178mm)
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	1672 1672 BK1672 ND BK1672ND BK1672
