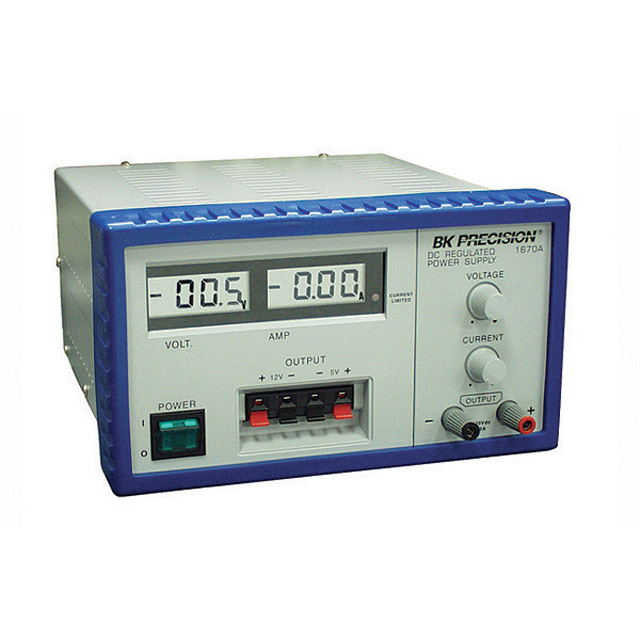

1670A

Производитель:

B&K Precision

Купить

форма запроса

Описание:

POWER SUPPLY 30V 3A TRPL-OUT

Категория:

Test Equipment

Корпус:

Год:

Technical/Catalog Information	1670A
Vendor	B&K Precision
Category	Test Equipment
Number of Outputs	3
Display Type	LCD
Features	-
Voltage - Output	0 ~ 30VDC, 12VDC Fixed, 5VDC Fixed
Current - Output	0 ~ 3 A, 0 ~ 500mA Fixed, 0 ~ 500mA Fixed
Voltage - Supply	115VAC/230VAC
Number of Digits/Alpha	3 (2)
Type	Bench (AC to DC)
Current Regulation - Line	0.4% + 10mA
Current Regulation - Load	0.4% + 10mA
Accuracy - Voltmeter; Ammeter	1% + 2 digits
Voltage Regulation - Line	0.05% + 10mV
Voltage Regulation - Load	0.05% + 10mV
Ripple	5mV rms
Weight	10 lbs (4.54kg)
Power (Watts)	165W
Size / Dimension	9.5" L x 8.5" W x 4.9" H (241mm x 215mm x 124mm)
Other Names	1670A 1670A BK1670A ND BK1670AND BK1670A
