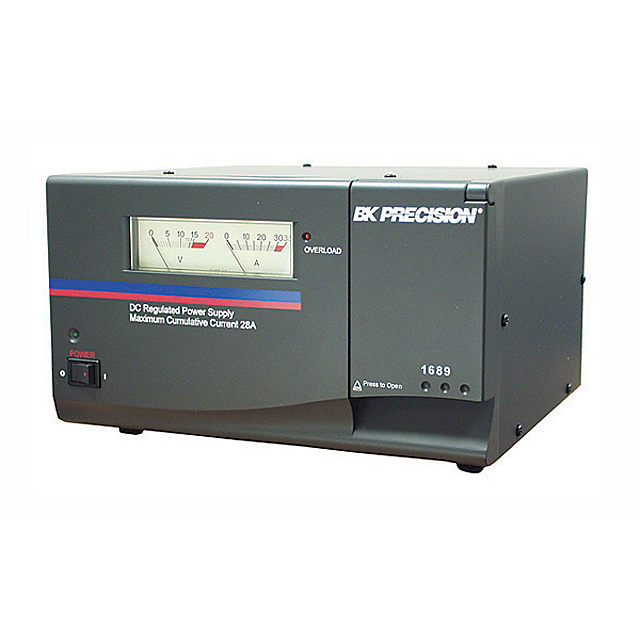

1689

Производитель:

B&K Precision

Купить

форма запроса

Описание:

POWER SUPPLY ANALOG 28A

Категория:

Test Equipment

Корпус:

Год:

Technical/Catalog Information	1689
Vendor	B&K Precision
Category	Test Equipment
Number of Outputs	3
Display Type	Analog
Features	3A terminals (2) on front, 1 - 28A terminal in back, Regulated
Voltage - Output	1 ~ 15VDC
Current - Output	0 ~ 3A, 0 ~ 28A
Voltage - Supply	120VAC
Number of Digits/Alpha	-
Type	Bench (AC to DC)
Current Regulation - Line	-
Current Regulation - Load	-
Accuracy - Voltmeter; Ammeter	-
Voltage Regulation - Line	5mV ±2% load
Voltage Regulation - Load	50mV
Ripple	5mV p-p
Weight	20 lbs (9.07kg)
Power (Watts)	-
Size / Dimension	9.84" L x 8.86" W x 5.5" H (250mm x 225mm x 140mm)
Other Names	1689 1689 BK1689 ND BK1689ND BK1689
