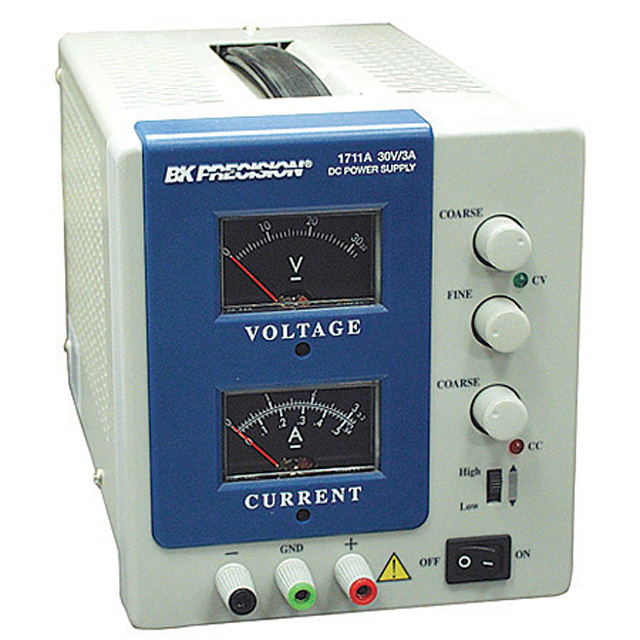

1711A

Производитель:

B&K Precision

Купить

форма запроса

Описание:

POWER SUPPLY 0-60VDC 0-2A

Категория:

Test and Work Bench Equipment

Корпус:

Год:

Technical/Catalog Information	1711A
Vendor	B&K Precision
Category	Test and Work Bench Equipment
Number of Outputs	1
Display Type	Analog
Features	Constant Current and Constant Voltage Indicators
Voltage - Output	0 ~ 60V
Current - Output	0 ~ 2A
Voltage - Supply	120VAC
Number of Digits/Alpha	-
Type	Bench (AC to DC)
Current Regulation - Line	0.2% + 3mA
Current Regulation - Load	0.2% + 3mA
Accuracy - Voltmeter; Ammeter	0.025
Voltage Regulation - Line	0.01% + 3mV
Voltage Regulation - Load	0.01% + 3mV
Ripple	1mV rms
Weight	12 lbs (5.4kg)
Power (Watts)	210W
Size / Dimension	12.5" L x 5.5" W x 6.2" H (318mm x 140mm x 158mm)
Other Names	1711A 1711A BK1711A ND BK1711AND BK1711A
