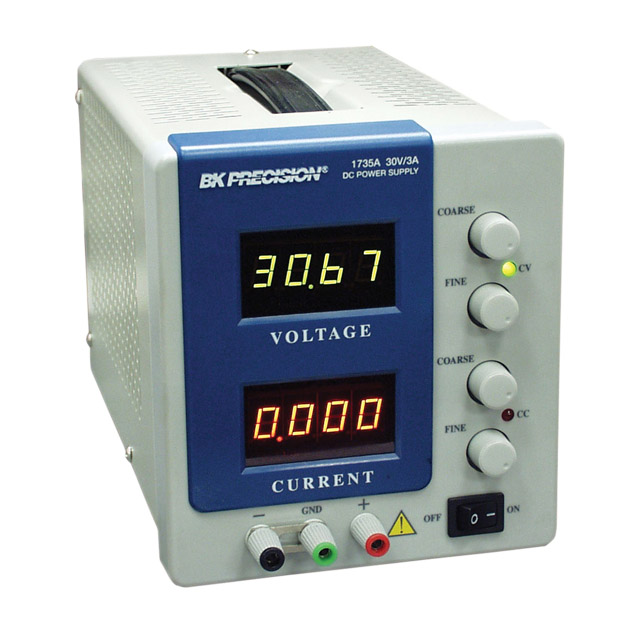

1735A

1735A



Производитель:

B&K Precision
Описание:
 POWER SUPPLY 0-30VDC 0-3A
Категория:
 Test Equipment
Корпус:
 --
Год:
 --

Datasheet (Техническое описание) 1735A

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog Information1735A
VendorB&K Precision
CategoryTest Equipment
Number of Outputs1
Display TypeLED
FeaturesConstant Current and Constant Voltage Indicators
Voltage - Output0 ~ 30V
Current - Output0 ~ 3A
Voltage - Supply120VAC
Number of Digits/Alpha4 (2)
TypeBench (AC to DC)
Current Regulation - Line0.2% + 3mA
Current Regulation - Load0.2% + 3mA
Accuracy - Voltmeter; Ammeter0.5% + 9 digits
Voltage Regulation - Line0.01% + 3mV
Voltage Regulation - Load0.01% + 3mV
Ripple2mV p-p, 1mV rms
Weight11 lbs (4.99kg)
Power (Watts)180W
Size / Dimension12.5" L x 5.5" W x 6.2" H (318mm x 140mm x 158mm)
Other Names 1735A
1735A
BK1735A ND
BK1735AND
BK1735A
