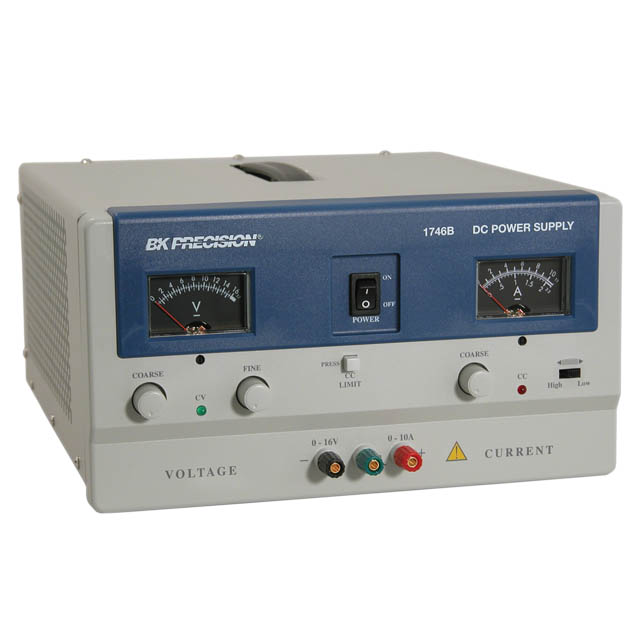

1746B

1746B



Производитель:

B&K Precision
Описание:
 POWER SUPPLY 0-16VDC 0-10A
Категория:
 Test and Work Bench Equipment
Корпус:
 --
Год:
 --

Datasheet (Техническое описание) 1746B

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog Information1746B
VendorB&K Precision
CategoryTest and Work Bench Equipment
Number of Outputs1
Display TypeAnalog
FeaturesDual Displays
Voltage - Output0 ~ 16V
Current - Output0 ~ 10A
Voltage - Supply120VAC/220VAC
Number of Digits/Alpha-
TypeBench (AC to DC)
Current Regulation - Line0.4% + 5mA
Current Regulation - Load0.4% + 5mA
Accuracy - Voltmeter; Ammeter0.025
Voltage Regulation - Line0.2% + 2mV
Voltage Regulation - Load0.04% + 2mV
Ripple1mV rms
Weight20 lbs (9.07kg)
Power (Watts)380W
Size / Dimension15" L x 10.5" W x 5.7" H (381mm x 267mm x 145mm)
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names 1746B
1746B
BK1746B ND
BK1746BND
BK1746B
