1760A

Производитель:

B&K Precision

Купить

форма запроса

Описание:

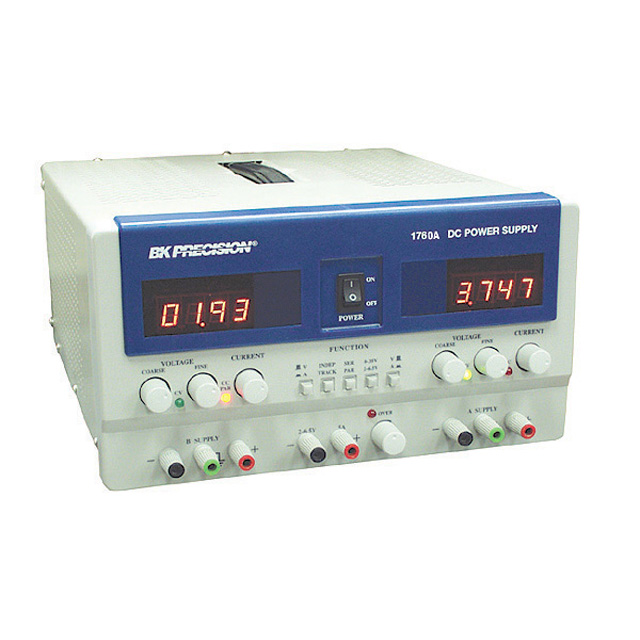

POWER SUPPLY TRIPLE OUTPUT

Категория:

Test Equipment

Корпус:

Год:

Technical/Catalog Information	1760A
Vendor	B&K Precision
Category	Test Equipment
Number of Outputs	3
Display Type	LED
Features	Independent or Tracking modes
Voltage - Output	0 ~ 30V, 0 ~ 30V, 4 ~ 6.5V
Current - Output	0 ~ 2A, 0 ~ 2A, 5A
Voltage - Supply	120VAC
Number of Digits/Alpha	4 (2)
Type	Bench (AC to DC)
Current Regulation - Line	0.2% + 3mA
Current Regulation - Load	0.2% + 3mA
Accuracy - Voltmeter; Ammeter	0.5% + 9 digits
Voltage Regulation - Line	0.01% + 3mV, 10mV (3rd Output)
Voltage Regulation - Load	0.01% + 3mV, 10mV (3rd Output)
Ripple	1mV rms
Weight	21 lbs (9.53kg)
Power (Watts)	350W
Size / Dimension	15" L x 10.5" W x 5.7" H (267mm x 145mm x 38mm)
Other Names	1760A 1760A BK1760A ND BK1760AND BK1760A
