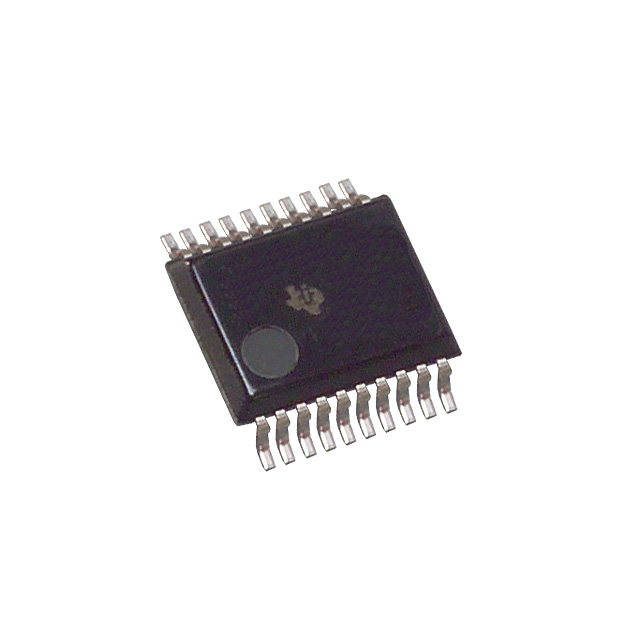

TPS5103IDB

TPS5103IDB



Производитель:

Texas Instruments
Описание:
 IC MULTI MODE DC-DC CONT 20-SSOP
Категория:
 Integrated Circuits (ICs)
Корпус:
 SSOP
Год:
 07+2.25

Datasheet (Техническое описание) TPS5103IDB

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationTPS5103IDB
VendorTexas Instruments
CategoryIntegrated Circuits (ICs)
TypeStep-Down (Buck)
Number of Outputs1
Voltage - Input4.5 ~ 25 V
Voltage - Output1.2 ~ 24 V
Current - Output3A
Power - Output801mW
Package / Case20-SSOP
PackagingTube
Internal Switch(s)No
SynchronousYes
Rds (On)-
Operating Temperature-40°C ~ 85°C
Frequency - Switching500kHz
Drawing Number296; 4040065; DB; 14, 16, 20, 24, 28, 30, 38
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names TPS5103IDB
TPS5103IDB
296 2261 5 ND
29622615ND
296-2261-5
