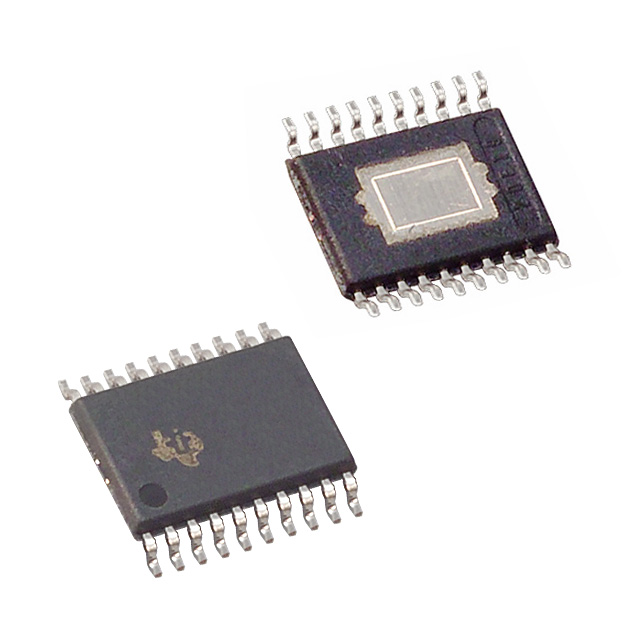

TPS54313PWPRG4

TPS54313PWPRG4



Производитель:

Texas Instruments
Описание:
 IC SYNC BUCK PWM CONV 20-HTSSOP
Категория:
 Integrated Circuits (ICs)
Корпус:
 N/A
Год:
 N/A

Datasheet (Техническое описание) TPS54313PWPRG4

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationTPS54313PWPRG4
VendorTexas Instruments
CategoryIntegrated Circuits (ICs)
TypeStep-Down (Buck)
Number of Outputs1
Voltage - Input3 ~ 6 V
Voltage - Output1.5V
Current - Output3A
Power - Output1.73W
Package / Case20-TSSOP Exposed Pad, 20-eTSSOP, 20-HTSSOP
PackagingTape & Reel (TR)
Internal Switch(s)Yes
SynchronousYes
Rds (On)59 mOhm
Operating Temperature-55°C ~ 125°C
Frequency - Switching350kHz, 550kHz
Drawing Number296; 4073225; PWP; 14, 16, 20, 24, 28
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names TPS54313PWPRG4
TPS54313PWPRG4
