1796

1796



Производитель:

B&K Precision
Описание:

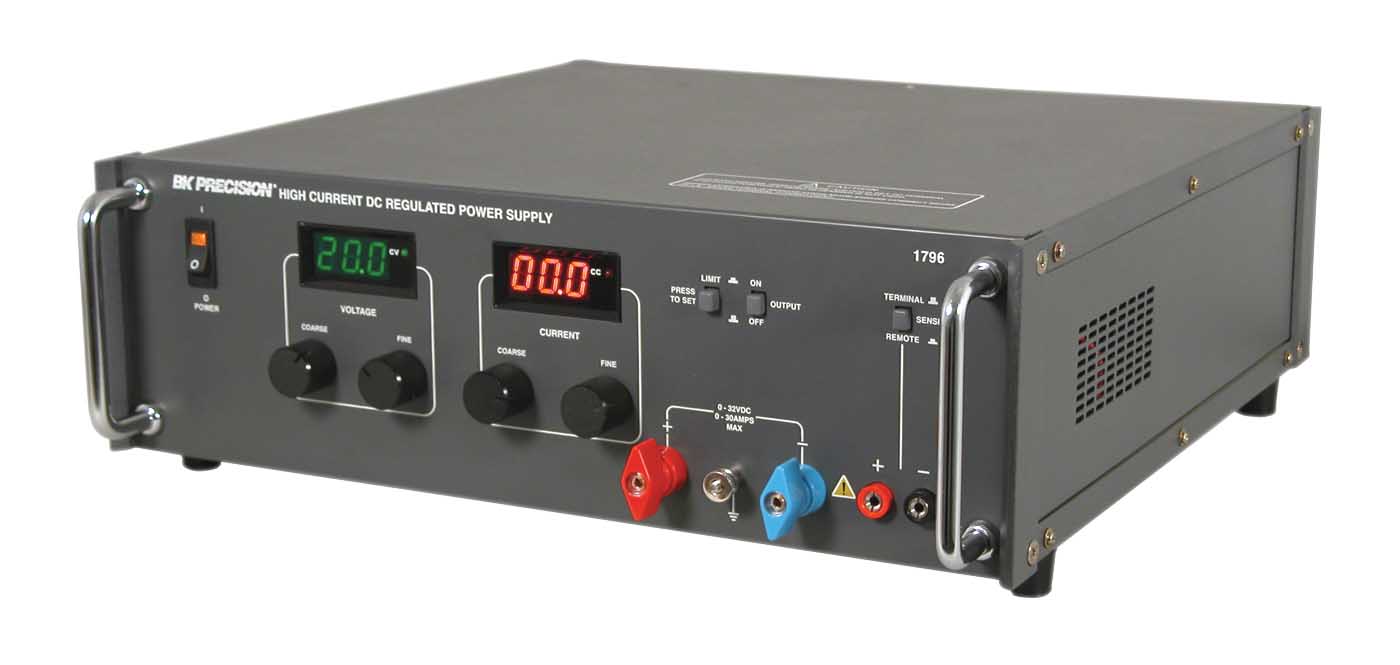

 POWER SPLY DC LINEAR 0-16V 0-50A
Категория:
 Test and Work Bench Equipment
Корпус:
 SOP-8
Год:
 05+

Datasheet (Техническое описание) 1796

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog Information1796
VendorB&K Precision
CategoryTest and Work Bench Equipment
Number of Outputs1
Display TypeLED
FeaturesRegulated
Voltage - Output0 ~ 16V
Current - Output0 ~ 50A
Voltage - Supply120VAC/230VAC
Number of Digits/Alpha3 (2)
TypeRack Mount (AC to DC)
Current Regulation - Line0.05% + 10mA
Current Regulation - Load0.05% + 10mA
Accuracy - Voltmeter; Ammeter-
Voltage Regulation - Line0.01% + 2mV
Voltage Regulation - Load0.01% + 2 mV
Ripple1mV rms
Weight62 lbs (28.12kg)
Power (Watts)-
Size / Dimension19" L x 15.75" W x 5.25" H (483mm x 400mm x 133mm)
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names 1796
1796
BK1796 ND
BK1796ND
BK1796
