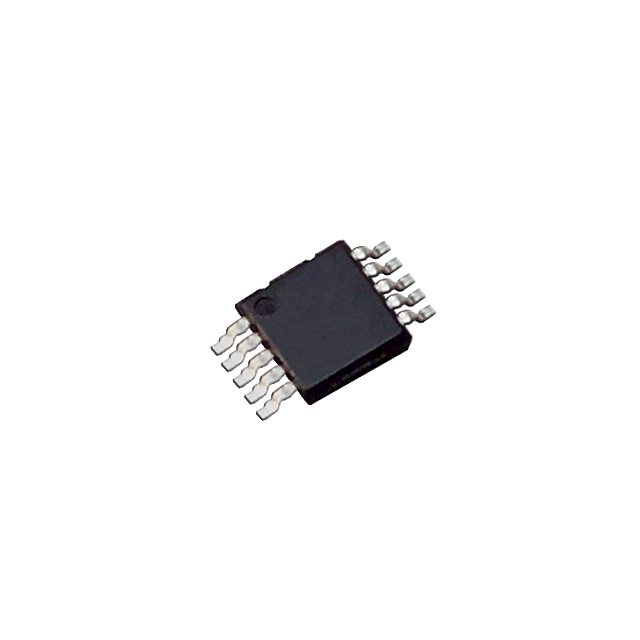

TPS60503DGS

TPS60503DGS



Производитель:

Texas Instruments
Описание:
 IC CHRG PUMP STPDWN 250MA 10MSOP
Категория:
 Integrated Circuits (ICs)
Корпус:
 MSOP-10
Год:
 01+

Datasheet (Техническое описание) TPS60503DGS

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationTPS60503DGS
VendorTexas Instruments
CategoryIntegrated Circuits (ICs)
TypeSwitched Capacitor (Charge Pump), Step-Down (Buck)
Number of Outputs1
Voltage - Input1.8 ~ 6.5 V
Voltage - Output1.5V
Current - Output250mA
Power - Output555mW
Package / Case10-MSOP, Micro10?, 10-uMAX, 10-uSOP
PackagingTube
Internal Switch(s)Yes
SynchronousNo
Rds (On)-
Operating Temperature-40°C ~ 85°C
Frequency - Switching800kHz
Drawing Number296; 4073272; DGS; 10
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names TPS60503DGS
TPS60503DGS
296 12516 5 ND
296125165ND
296-12516-5
