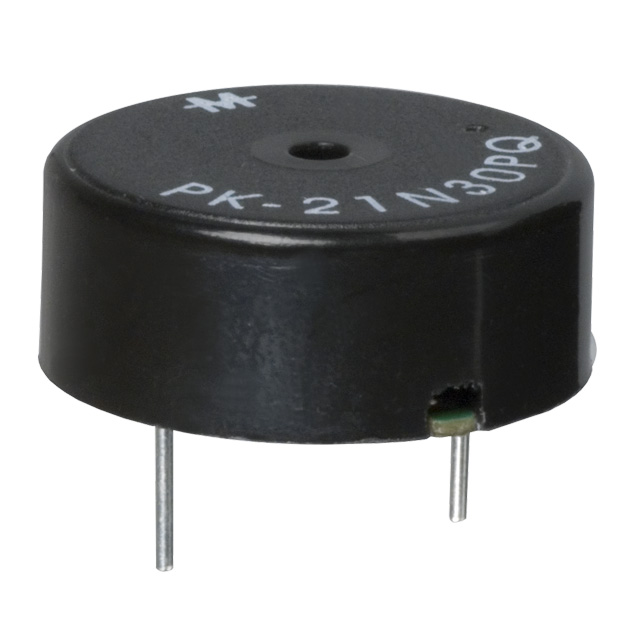

PK-21N30PQ

PK-21N30PQ



Производитель:

Mallory Sonalert Products Inc
Описание:
 BUZZER PIEZO 3KHZ 24MM PC MT
Категория:
 Audio Products
Корпус:
 --
Год:
 --

Datasheet (Техническое описание) PK-21N30PQ

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationPK-21N30PQ
VendorMallory Sonalert Products Inc
CategoryAudio Products
TypePiezo Indicator, Internal Drive
Sound Pressure Level80dB
Mounting TypeThrough Hole
Capacitance @ Frequency-
Frequency-
PackagingBulk
Operating ModeContinuous
Voltage Range1.5~30VDC
Voltage - Rated 12VDC
Current Rating12mA
Size / DimensionCircular - 24mm Dia x 9.5mm H
TerminationSolder Pins/Posts
Capacitance*
Adjustment Type*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names PK 21N30PQ
PK21N30PQ
458 1071 ND
4581071ND
458-1071
