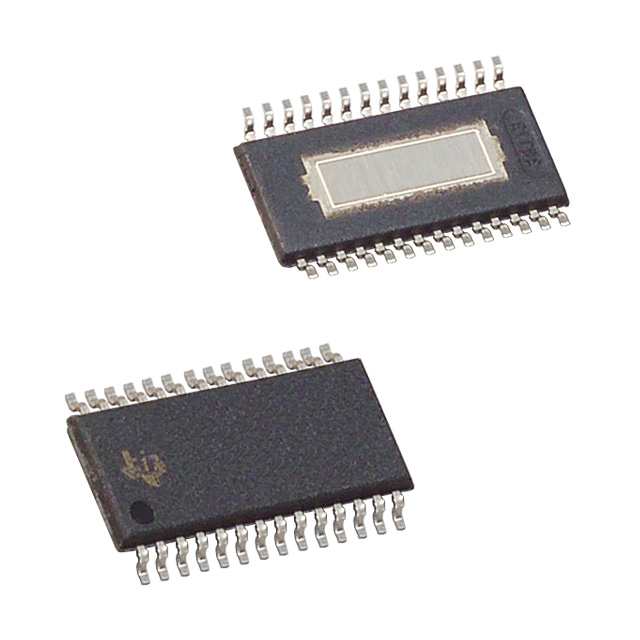

TPS56300PWP

TPS56300PWP



Производитель:

Texas Instruments
Описание:
 IC DSP PWR SUPPLY CONT 28-HTSSOP
Категория:
 Integrated Circuits (ICs)
Корпус:
 240
Год:
 Ti

Datasheet (Техническое описание) TPS56300PWP

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationTPS56300PWP
VendorTexas Instruments
CategoryIntegrated Circuits (ICs)
TypeStep-Down (Buck)
Number of Outputs2
Voltage - Input2.8 ~ 5.5 V
Voltage - Output1.3 ~ 3.3 V
Current - Output2A
Power - Output3.58W
Package / Case28-TSSOP Exposed Pad, 28-eTSSOP, 28-HTSSOP
PackagingTube
Internal Switch(s)No
SynchronousYes
Rds (On)-
Operating Temperature-40°C ~ 125°C
Frequency - Switching300kHz
Drawing Number296; 4073225; PWP; 14, 16, 20, 24, 28
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names TPS56300PWP
TPS56300PWP
296 2476 5 ND
29624765ND
296-2476-5
