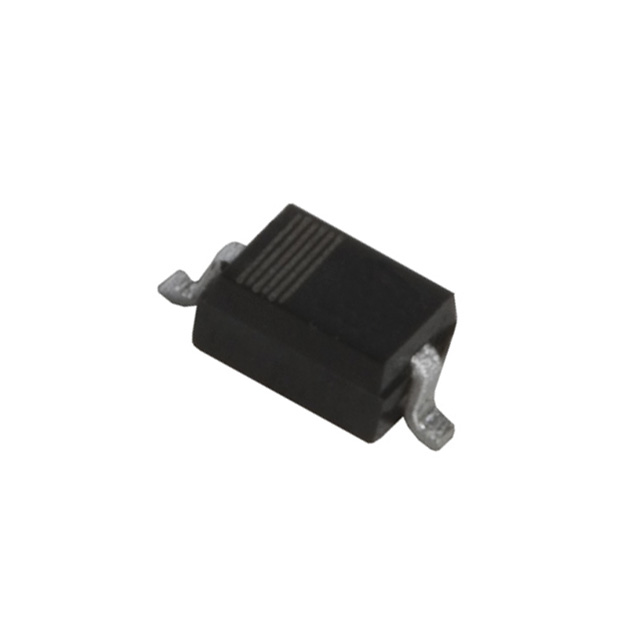

| Technical/Catalog Information | 1PS76SB10,115 |
| Vendor | NXP Semiconductors |
| Category | Discrete Semiconductor Products |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30V |
| Current - Average Rectified (Io) | 200mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 800mV @ 100mA |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 2??A @ 25V |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Mounting Type | Surface Mount |
| Package / Case | SC-76, SOD-323, UMD2 |
| Packaging | Tape & Reel (TR) |
| Capacitance @ Vr, F | 10pF @ 1V, 1MHz |
| Drawing Number | 568; SOD323; ; 2 |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | 1PS76SB10,115
1PS76SB10,115
568 3406 2 ND
56834062ND
568-3406-2
|
