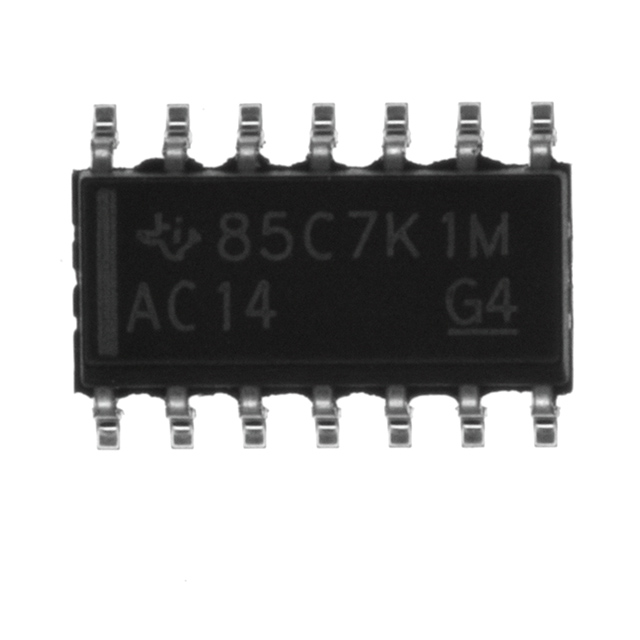

SN74AC14DR

SN74AC14DR



Производитель:

Texas Instruments (VA)
Описание:
 IC HEX SCHMITT-TRIG INV 14-SOIC
Категория:
 Integrated Circuits (ICs)
Корпус:
 SOP-14
Год:
 97+

Datasheet (Техническое описание) SN74AC14DR

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationSN74AC14DR
VendorTexas Instruments (VA)
CategoryIntegrated Circuits (ICs)
Number of Circuits6 - Hex
Package / Case14-SOIC (3.9mm Width), 14-SOL
Logic TypeInverter with Schmitt Trigger
PackagingCut Tape (CT)
Mounting TypeSurface Mount
Number of Inputs1
Current - Output High, Low24mA, 24mA
Supply Voltage2 V ~ 6 V
Operating Temperature-40°C ~ 85°C
Voltage - Supply2 V ~ 6 V
Drawing Number296; 4040047-3; D; 14
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names SN74AC14DR
SN74AC14DR
296 4300 1 ND
29643001ND
296-4300-1
