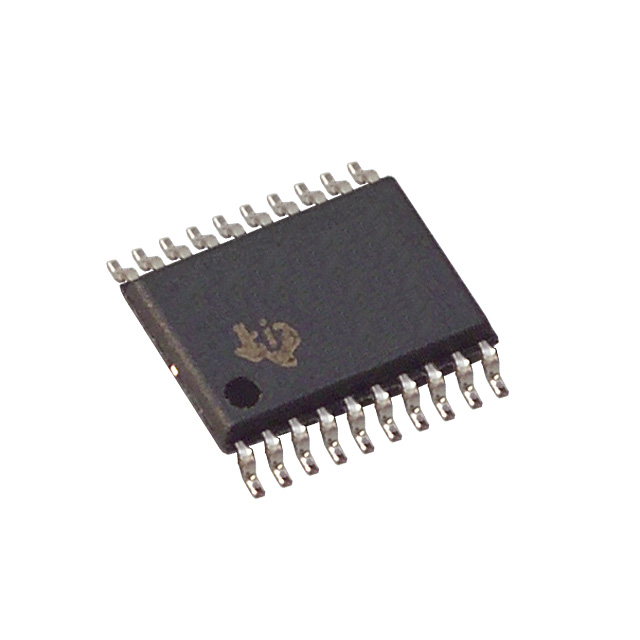

Datasheet (Техническое описание) SN74ACT534PWR
Поиск в бесплатном архиве даташитов datasheet.su
Посмотреть все характеристики
| Technical/Catalog Information | SN74ACT534PWR | | Vendor | Texas Instruments (VA) | | Category | Integrated Circuits (ICs) | | Mounting Type | Surface Mount | | Package / Case | 20-TSSOP | | Function | Standard | | Number of Bits per Element | 8 | | Number of Elements | 1 - Single | | Current - Output High, Low | 24mA, 24mA | | Output Type | Tri-State Inverted | | Trigger Type | Positive Edge | | Type | D-Type Bus | | Packaging | Cut Tape (CT) | | Operating Temperature | -40°C ~ 85°C | | Delay Time - Propagation | 2.5ns | | Frequency - Clock | 100MHz | | Voltage - Supply | 4.5 V ~ 5.5 V | | Drawing Number | 296; 4040064; PW; 8, 14, 16, 20, 24, 28 | | Lead Free Status | Lead Free | | RoHS Status | RoHS Compliant | | Other Names | SN74ACT534PWR
SN74ACT534PWR
296 4430 1 ND
29644301ND
296-4430-1
|
|
