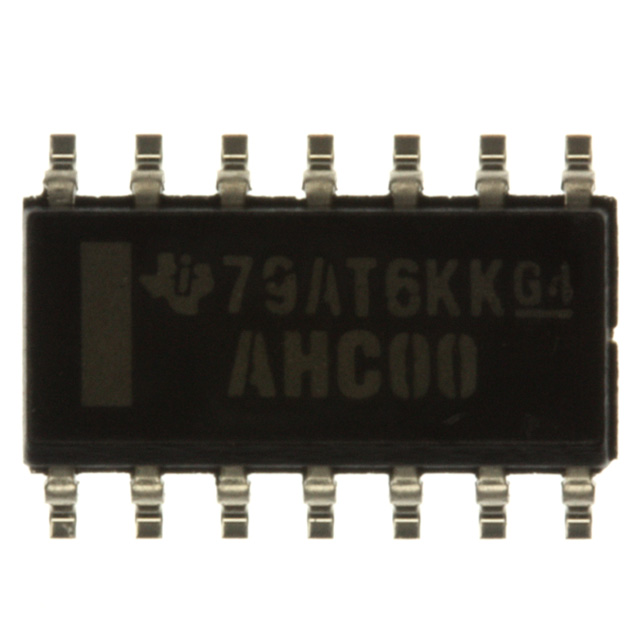

SN74AHC00DR

SN74AHC00DR



Производитель:

Texas Instruments (VA)
Описание:
 IC QUAD 2IN POS-NAND GATE 14SOIC
Категория:
 Integrated Circuits (ICs)
Корпус:
 SOP3.9
Год:
 2004

Datasheet (Техническое описание) SN74AHC00DR

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationSN74AHC00DR
VendorTexas Instruments (VA)
CategoryIntegrated Circuits (ICs)
Number of Circuits4 - Quad
Package / Case14-SOIC (3.9mm Width), 14-SOL
Logic TypeNAND Gate
PackagingCut Tape (CT)
Mounting TypeSurface Mount
Number of Inputs2
Current - Output High, Low8mA, 8mA
Supply Voltage2 V ~ 5.5 V
Operating Temperature-40°C ~ 85°C
Voltage - Supply2 V ~ 5.5 V
Drawing Number296; 4040047-3; D; 14
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names SN74AHC00DR
SN74AHC00DR
296 4509 1 ND
29645091ND
296-4509-1
