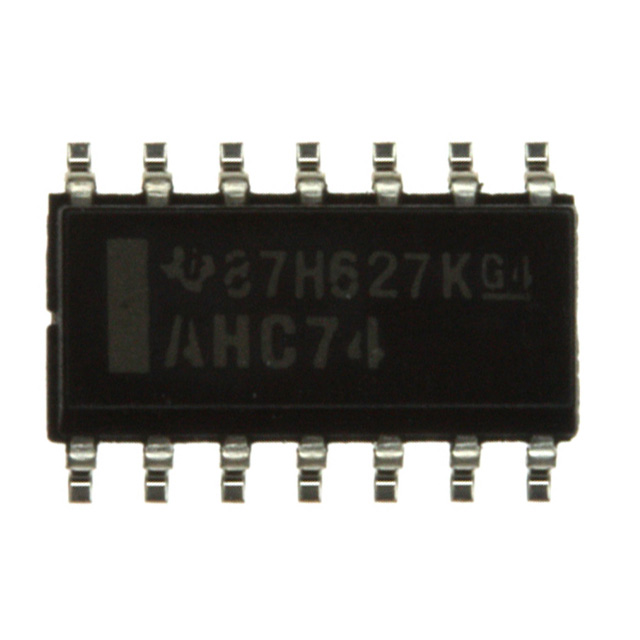

SN74AHC74D

SN74AHC74D



Производитель:

Texas Instruments
Описание:
 IC DUAL POS-EDG-TRG D F-F 14SOIC
Категория:
 Integrated Circuits (ICs)
Корпус:
 SO14/5.2
Год:
 01+

Datasheet (Техническое описание) SN74AHC74D

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationSN74AHC74D
VendorTexas Instruments
CategoryIntegrated Circuits (ICs)
Mounting TypeSurface Mount
Package / Case14-SOIC (3.9mm Width), 14-SOL
FunctionSet and Reset
Number of Bits per Element1
Number of Elements2 - Dual
Current - Output High, Low8mA, 8mA
Output TypeDifferential
Trigger TypePositive Edge
TypeD-Type
PackagingTube
Operating Temperature-40°C ~ 85°C
Delay Time - Propagation1ns
Frequency - Clock115MHz
Voltage - Supply2 V ~ 5.5 V
Drawing Number296; 4040047-3; D; 14
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names SN74AHC74D
SN74AHC74D
296 1105 5 ND
29611055ND
296-1105-5
