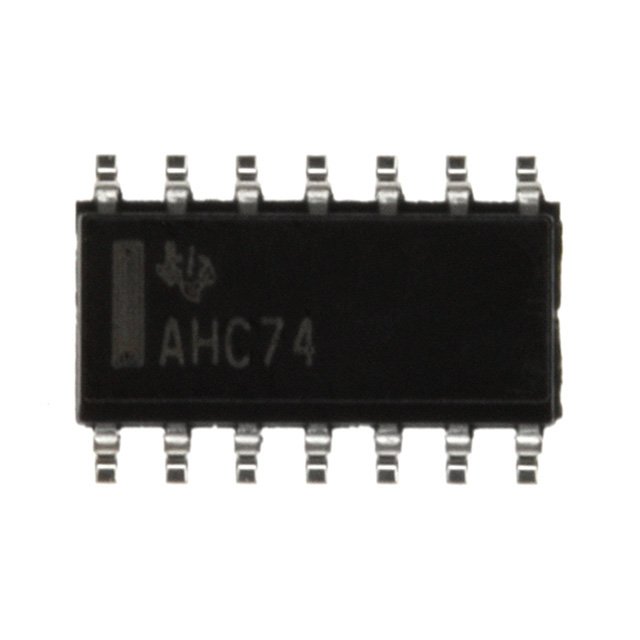

SN74AHC74DR

SN74AHC74DR



Производитель:

Texas Instruments (VA)
Описание:
 IC DUAL POS-EDG-TRG D F-F 14SOIC
Категория:
 Integrated Circuits (ICs)
Корпус:
 --
Год:
 0440/44+

Datasheet (Техническое описание) SN74AHC74DR

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationSN74AHC74DR
VendorTexas Instruments (VA)
CategoryIntegrated Circuits (ICs)
Mounting TypeSurface Mount
Package / Case14-SOIC (3.9mm Width), 14-SOL
FunctionSet and Reset
Number of Bits per Element1
Number of Elements2 - Dual
Current - Output High, Low8mA, 8mA
Output TypeDifferential
Trigger TypePositive Edge
TypeD-Type
PackagingCut Tape (CT)
Operating Temperature-40°C ~ 85°C
Delay Time - Propagation1ns
Frequency - Clock115MHz
Voltage - Supply2 V ~ 5.5 V
Drawing Number296; 4040047-3; D; 14
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names SN74AHC74DR
SN74AHC74DR
296 1105 1 ND
29611051ND
296-1105-1
