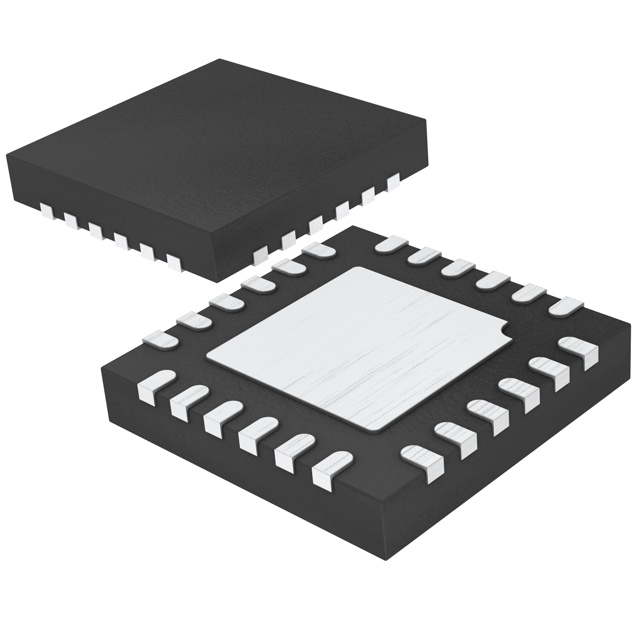

LTC3520IUF-PBF

LTC3520IUF-PBF



Производитель:

Linear Technology
Описание:
 IC CONV BUCK BOOST/BUCK 24-QFN
Категория:
 Integrated Circuits (ICs)
Корпус:
 --
Год:
 --

Datasheet (Техническое описание) LTC3520IUF-PBF

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationLTC3520IUF#PBF
VendorLinear Technology
CategoryIntegrated Circuits (ICs)
TypeStep-Down (Buck), Step-Up (Boost)
Number of Outputs2
Voltage - Input2.2 ~ 5.5 V
Voltage - Output0.8 ~ 5.5 V
Current - Output600mA, 1A
Power - Output-
Package / Case24-QFN
PackagingTube
Internal Switch(s)Yes
SynchronousYes
Rds (On)180 mOhm (N-Chan), 320 mOhm (P-Chan) Buck; 150 mOhm (N-Chan), 200 mOhm (P-Chan) Buck-Boost
Operating Temperature-40°C ~ 125°C
Frequency - Switching100kHz ~ 2MHz
Drawing Number161; 05-08-1697; UF; 24
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names LTC3520IUF#PBF
LTC3520IUF#PBF
