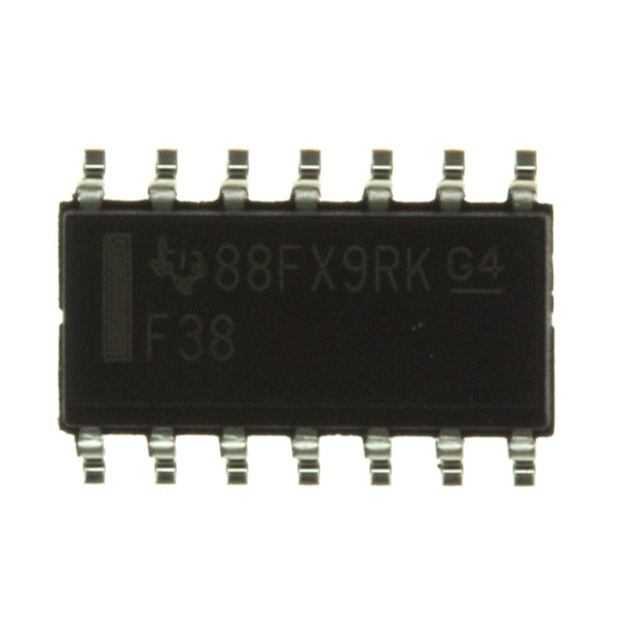

SN74F38DR

SN74F38DR



Производитель:

Texas Instruments (VA)
Описание:
 IC GATE NAND QUAD 2INPUT 14SOICN
Категория:
 Integrated Circuits (ICs)
Корпус:
 SMD
Год:
 01+

Datasheet (Техническое описание) SN74F38DR

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationSN74F38DR
VendorTexas Instruments (VA)
CategoryIntegrated Circuits (ICs)
Number of Circuits4 - Quad
Package / Case14-SOIC (3.9mm Width), 14-SOL
Logic TypeNAND Gate
PackagingDigi-Reel?
Mounting TypeSurface Mount
Number of Inputs2
Current - Output High, Low64mA, 64mA
Supply Voltage4.5 V ~ 5.5 V
Operating Temperature0°C ~ 70°C
Voltage - Supply4.5 V ~ 5.5 V
Drawing Number296; 4040047-3; D; 14
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names SN74F38DR
SN74F38DR
296 14312 6 ND
296143126ND
296-14312-6
