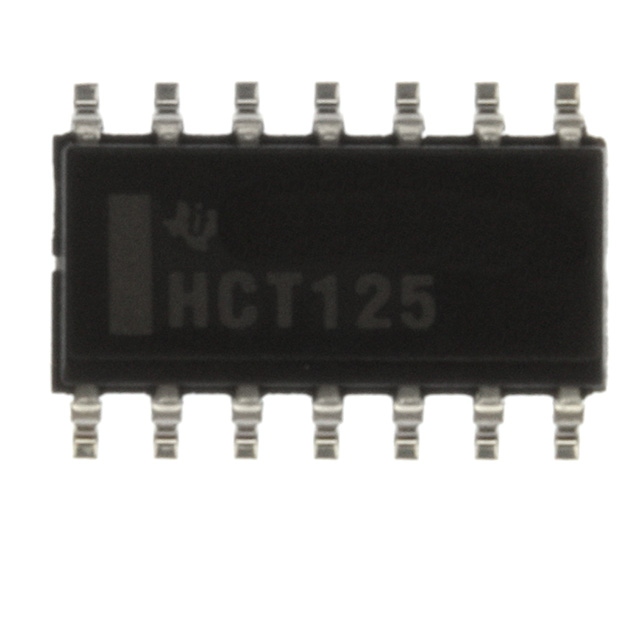

SN74HCT125D

SN74HCT125D



Производитель:

Texas Instruments
Описание:
 IC BUS BUFF TRI-ST QD 14SOICN
Категория:
 Integrated Circuits (ICs)
Корпус:
 SOP14
Год:
 0052+

Datasheet (Техническое описание) SN74HCT125D

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationSN74HCT125D
VendorTexas Instruments
CategoryIntegrated Circuits (ICs)
Logic TypeLine Driver, Non-Inverting
Package / Case14-SOIC (3.9mm Width), 14-SOL
PackagingTube
Mounting TypeSurface Mount
Number of Bits per Element1
Number of Elements4 - Quad
Operating Temperature-40°C ~ 85°C
Voltage - Supply4.5 V ~ 5.5 V
Current - Output High, Low6mA, 6mA
Drawing Number296; 4040047-3; D; 14
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names SN74HCT125D
SN74HCT125D
296 1206 5 ND
29612065ND
296-1206-5
