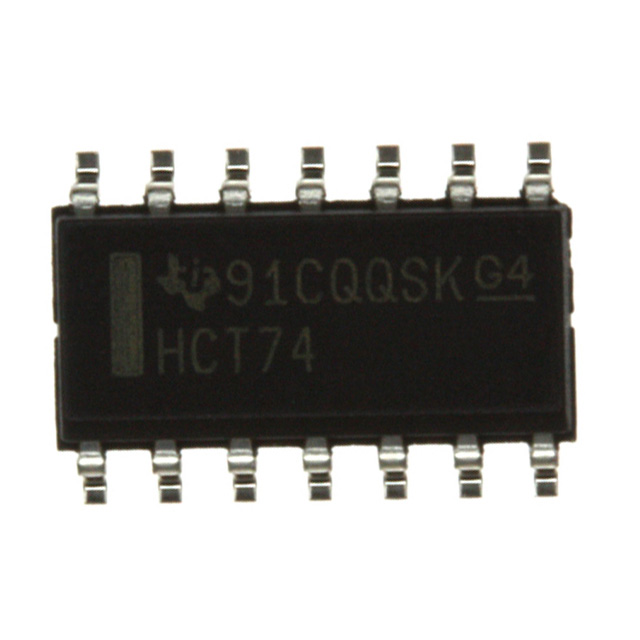

SN74HCT74DR

SN74HCT74DR



Производитель:

Texas Instruments (VA)
Описание:
 IC DUAL D-TYPE FLIP-FLOP 14-SOIC
Категория:
 Integrated Circuits (ICs)
Корпус:
 SOP14
Год:
 98

Datasheet (Техническое описание) SN74HCT74DR

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationSN74HCT74DR
VendorTexas Instruments (VA)
CategoryIntegrated Circuits (ICs)
Mounting TypeSurface Mount
Package / Case14-SOIC (3.9mm Width), 14-SOL
FunctionSet and Reset
Number of Bits per Element1
Number of Elements2 - Dual
Current - Output High, Low4mA, 4mA
Output TypeDifferential
Trigger TypePositive Edge
TypeD-Type
PackagingDigi-Reel?
Operating Temperature-40°C ~ 85°C
Delay Time - Propagation18ns
Frequency - Clock46MHz
Voltage - Supply4.5 V ~ 5.5 V
Drawing Number296; 4040047-3; D; 14
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names SN74HCT74DR
SN74HCT74DR
296 1211 6 ND
29612116ND
296-1211-6
