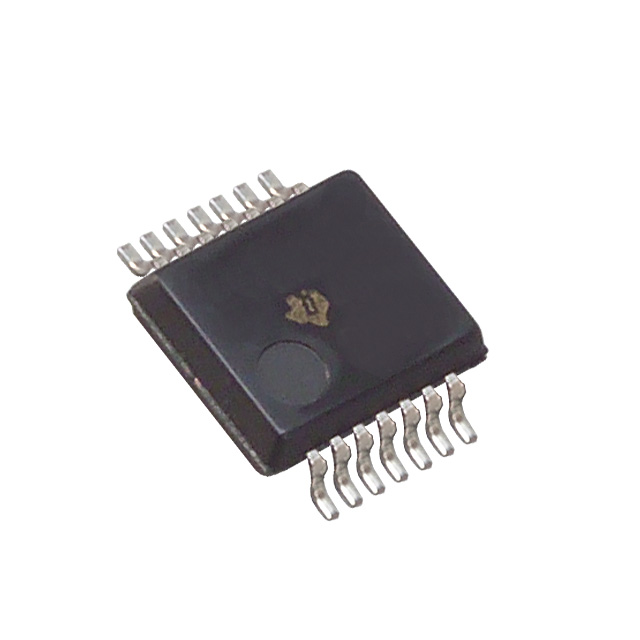

Datasheet (Техническое описание) SN74LS00DBR
Поиск в бесплатном архиве даташитов datasheet.su
Посмотреть все характеристики
| Technical/Catalog Information | SN74LS00DBR | | Vendor | Texas Instruments (VA) | | Category | Integrated Circuits (ICs) | | Number of Circuits | 4 - Quad | | Package / Case | 14-SSOP | | Logic Type | NAND Gate | | Packaging | Digi-Reel? | | Mounting Type | Surface Mount | | Number of Inputs | 2 | | Current - Output High, Low | 400??A, 16mA | | Supply Voltage | 4.75 V ~ 5.25 V | | Operating Temperature | 0°C ~ 70°C | | Voltage - Supply | 4.75 V ~ 5.25 V | | Drawing Number | 296; 4040065; DB; 14, 16, 20, 24, 28, 30, 38 | | Lead Free Status | Lead Free | | RoHS Status | RoHS Compliant | | Other Names | SN74LS00DBR
SN74LS00DBR
296 3615 6 ND
29636156ND
296-3615-6
|
|
