SPP11N80C3

SPP11N80C3



Производитель:

Infineon Technologies
Описание:

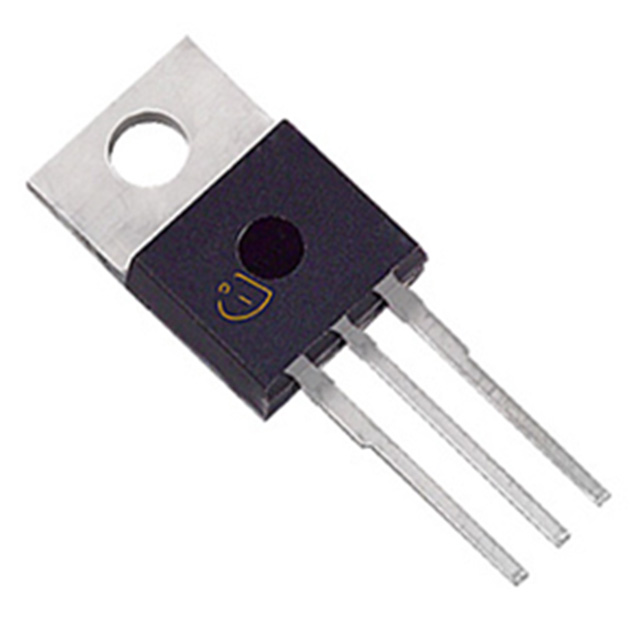

 MOSFET N-CH 800V 11A TO-220AB
Категория:
 Discrete Semiconductor Products
Корпус:
 T0-220
Год:
 06+

Datasheet (Техническое описание) SPP11N80C3

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationSPP11N80C3
VendorInfineon Technologies
CategoryDiscrete Semiconductor Products
Mounting TypeThrough Hole
FET PolarityN-Channel
Drain to Source Voltage (Vdss)800V
Current - Continuous Drain (Id) @ 25° C11A
Rds On (Max) @ Id, Vgs450 mOhm @ 7.1A, 10V
Input Capacitance (Ciss) @ Vds 1600pF @ 100V
Power - Max156W
PackagingTube
Gate Charge (Qg) @ Vgs85nC @ 10V
Package / CaseTO-220AB
FET FeatureStandard
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names SPP11N80C3
SPP11N80C3
SPP11N80C3IN ND
SPP11N80C3INND
SPP11N80C3IN
