SPP21N10

SPP21N10



Производитель:

Infineon Technologies
Описание:

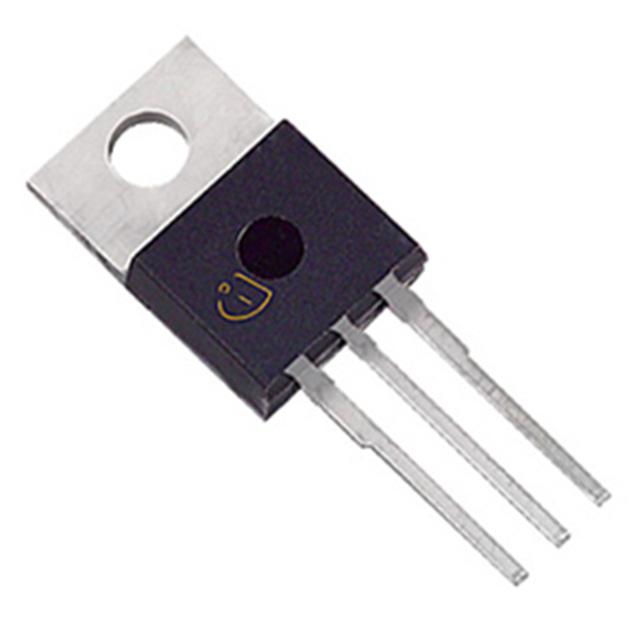

 MOSFET N-CH 100V 21A TO-220AB
Категория:
 Discrete Semiconductor Products
Корпус:
 T0-220
Год:
 06+

Datasheet (Техническое описание) SPP21N10

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationSPP21N10
VendorInfineon Technologies
CategoryDiscrete Semiconductor Products
Mounting TypeThrough Hole
FET PolarityN-Channel
Drain to Source Voltage (Vdss)100V
Current - Continuous Drain (Id) @ 25° C21A
Rds On (Max) @ Id, Vgs80 mOhm @ 15A, 10V
Input Capacitance (Ciss) @ Vds 865pF @ 25V
Power - Max90W
PackagingTube
Gate Charge (Qg) @ Vgs38.4nC @ 10V
Package / CaseTO-220AB
FET FeatureStandard
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names SPP21N10
SPP21N10
SPP21N10IN ND
SPP21N10INND
SPP21N10IN
