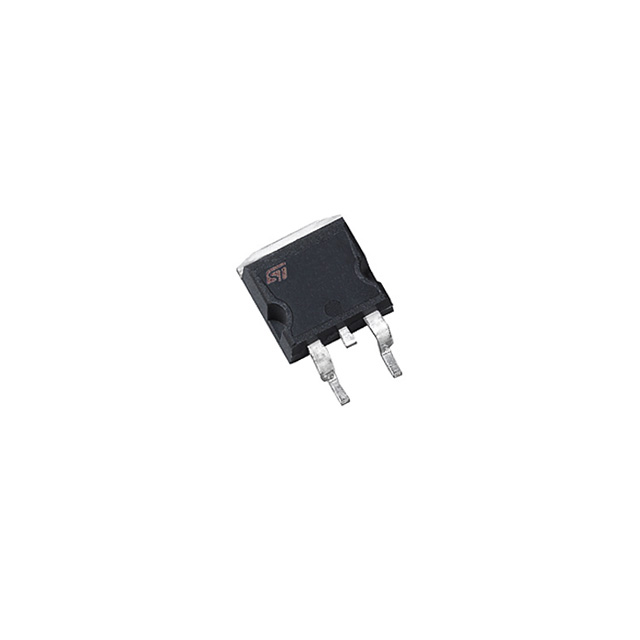

STB80NF03L-04T4

STB80NF03L-04T4



Производитель:

STMicroelectronics (VA)
Описание:
 MOSFET N-CH 30V 80A D2PAK
Категория:
 Discrete Semiconductor Products
Корпус:
 N/A
Год:
 09+

Datasheet (Техническое описание) STB80NF03L-04T4

Поиск в бесплатном архиве даташитов datasheet.su


Посмотреть все характеристики
Technical/Catalog InformationSTB80NF03L-04T4
VendorSTMicroelectronics (VA)
CategoryDiscrete Semiconductor Products
Mounting TypeSurface Mount
FET PolarityN-Channel
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25° C80A
Rds On (Max) @ Id, Vgs4 mOhm @ 40A, 10V
Input Capacitance (Ciss) @ Vds 5500pF @ 25V
Power - Max300W
PackagingDigi-Reel?
Gate Charge (Qg) @ Vgs110nC @ 4.5V
Package / CaseD²Pak, SMD-220, TO-263 (2 leads + tab)
FET FeatureLogic Level Gate
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names STB80NF03L 04T4
STB80NF03L04T4
497 7952 6 ND
49779526ND
497-7952-6
